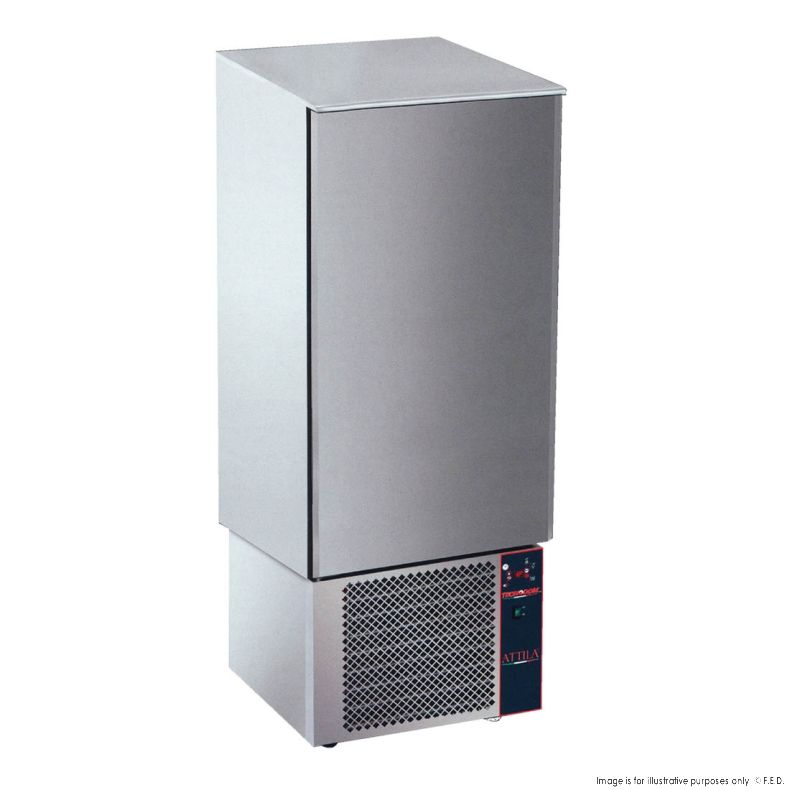

Blast chiller 20 X 1/1 GN pan capacity - DO20

Blast Chiller- DO20

• ADVANCED DESIGN
• ALL STAINLESS STEEL
• Ambient operating temp. 43ºC
• Blast Chilling Performance +3ºC
• Blast Freezing Performance -18ºC

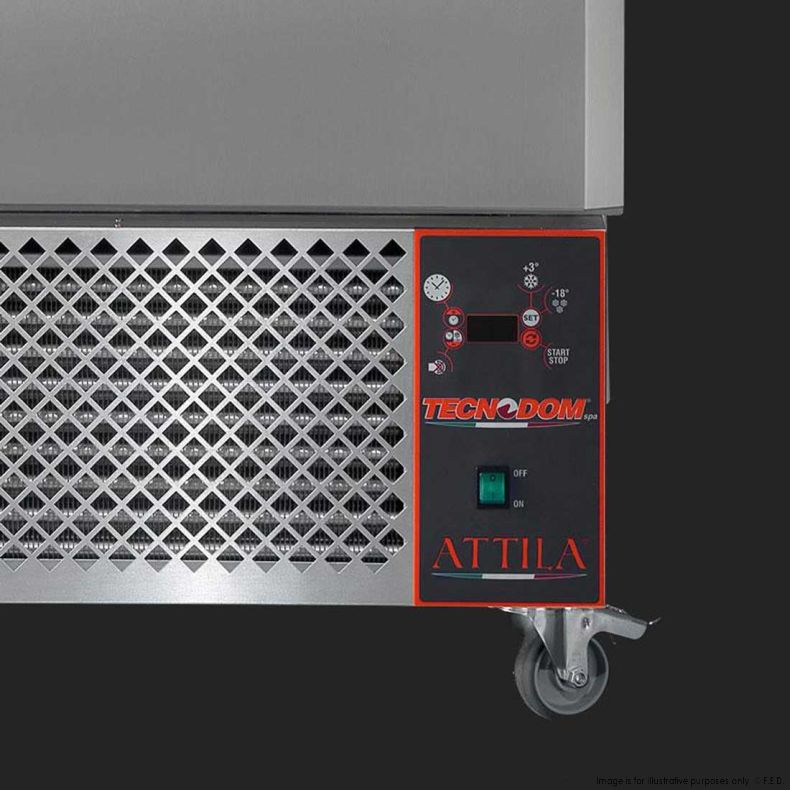

• Digital controller with probe and temperature display
• Stainless Steel interior and exterior
• Internal rounded corners for easy cleaning
• Insulation in 60mm thickness CFC free polyurethane
• Adjustable Stainless Steel feet
• Self-closing door with magnetic gasket
• Ambient operation temperature 43°C and 65% RH
• 415V; 2.25kW; 3 phase unit
• Process 70 kg from 90°C to -18°C in 180 mins
• Stainless steel interior and exterior, with the exception of the external base in galvanised steel
• Rounded internal corners
• Insulation thickness: 40 mm
• Self-closing door with hinges on the left and magnetic gasket
• Chamber probe.

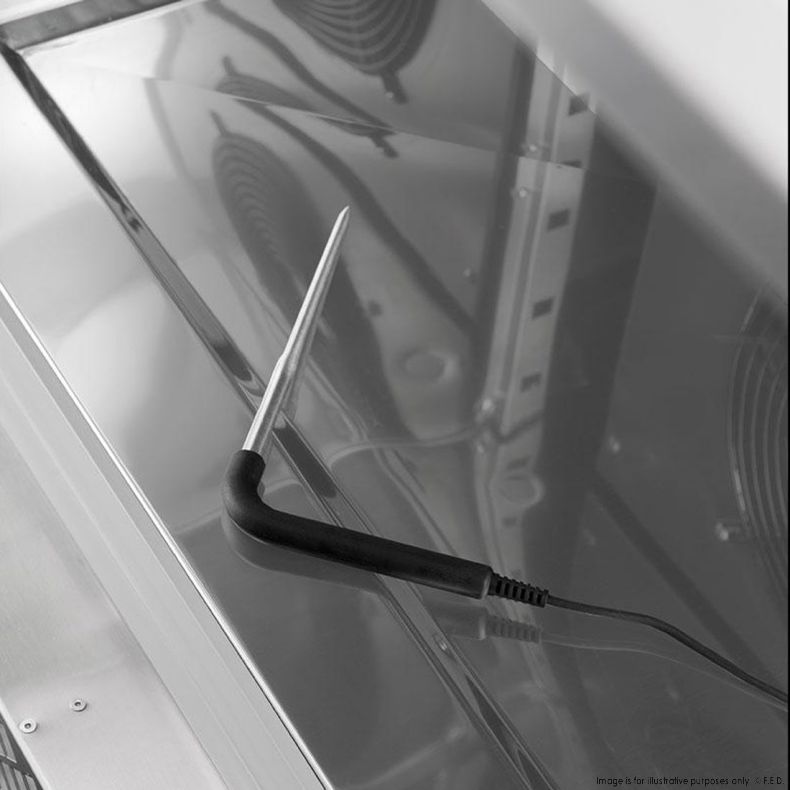

• Core probe.

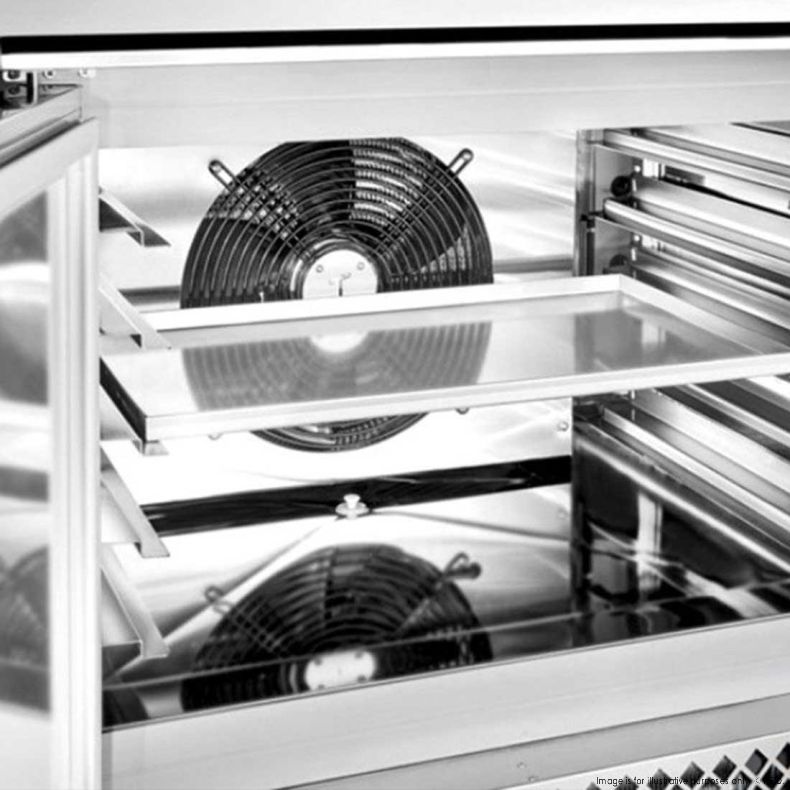

• Universal stainless steel pan grids
• Space between grids 65mm
• Internal volume: 340L

DImension

• 750mmW×740D×2090/2120H

2 Years Parts and Labour Warranty

Specifications

Packing Width (mm) - 770
Packing Depth (mm) - 780
Packing Height (mm) - 2190
Power - 415V; 3 phase
Warranty - 2 Years Parts and Labour
