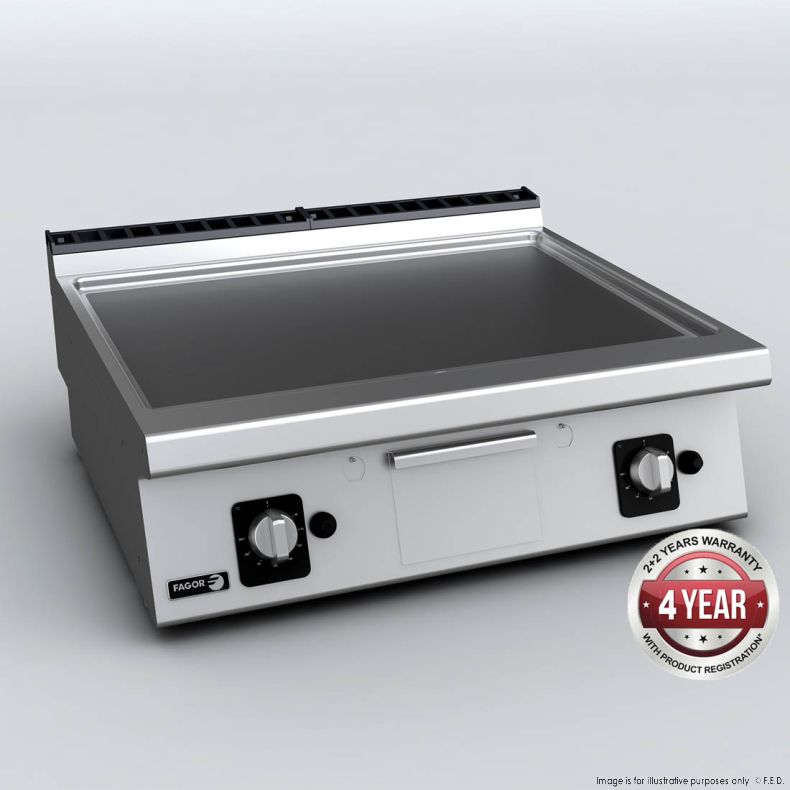

Fagor Kore 700 Bench Top Mild Steel Gas Griddle NG - FT-G710L

Bench Top Mild Steel Gas Griddle NG - FT-G710L

• Stamped surface tops manufactured in 1.5 mm thick AISI-304 stainless steel.
• Laser-cut joints, automatic welding and polishing. Hidden screws.
• Rapid reaction and recovery times of the fry-top temperature.
• The fry tops are welded to the stamped surface top.
• The stamped shell and its rounded edges and corners make cleaning much easier.
• The fry top is tilted towards the front to make it easier to collect grease and liquids.
• Fitted with an opening to collect cooking grease and a tray to store it which has capacity to store up to 2 litres depending on the model.
• Optional anti-splash side and rear guards, easy to remove.
• High-temperature enamelled cast iron flue protector.
• Access to components from the front.
• Machines with IPX5 grade water protection.
• Model with smooth hot plates.
• 12 mm thick mild steel fry tops which are quick-heating and high power.
• Gas heated model with high efficiency burners (separate burners for whole-module models).
• Model with thermostatic temperature control (between 100 and 300 °C).
• Burner ignition through electronic spark igniter. Therefore, the gas models do not need electricity for installation. With anaccess tube for manual ignition.
• Whole-module fry tops have two separate heating areas.

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration within 14 Days of Invoice

Specifications

Net Weight (Kg) - 128
Width (mm) - 800
Depth (mm) - 730
Height (mm) - 290
Packing Width (mm) - 840
Packing Depth (mm) - 822
Packing Height (mm) - 535
Power - 50mj/h; 15kW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Product Attachments

CAD_Drawing

English_FT-G710_L_LPG_Gas_Spec

English_FT-G710_L_Natural_Gas_Spec

FT-G710_L Product Image

Spare_Part_Manual_FT-G705_G710_V__2020-03

User_manual_FT-G900_G700__2021-02_EN

3_19074844_FT-G710-L_RFA

Fagor Industrial Kore Generation
