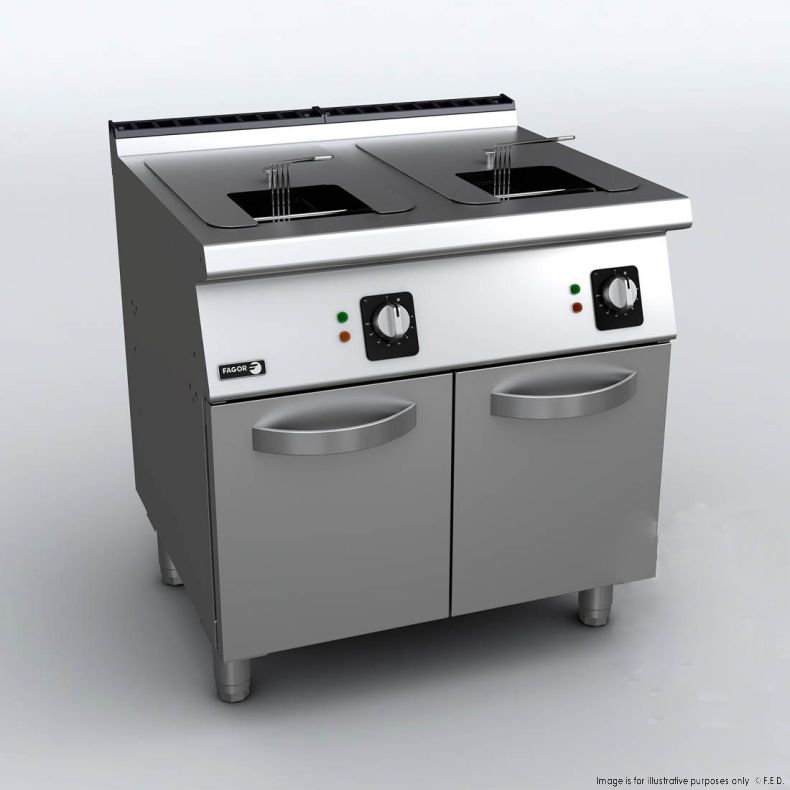

Fagor Kore 700 Fryer with 2x15L Tank and 2 Baskets - F-G7215

Fryer with 2x15L Tank and 2 Baskets - F-G7215

• Surface top manufactured in 1.5 mm thick AISI-304 stainless steel.
• Laser-cut joints, automatic welding and polishing. Hidden screws.
• Well built into the surface top with robotic welding and polishing.
• Cold area in the lower part of the well which helps to preserve the characteristics and quality of the oil used for longer.
• Thermostatic temperature control, between 60 and 200 °C.
• Safety thermostat in all models.
• Fitted with individual lids for each well.
• Drainage of oil from the well through a mechanical ball valve which is robust, reliable and resistant to high temperatures.
• High power machine that heat up quickly and have a high power - litre ratio (up to 1.00 kW/litre).
• Gas model with three longitudinal heat transfer tubes built into the well.
• High-efficiency Gas burners.
• Flue flush with the rest of the machines thanks to the perfect combustion achieved.
• Number of wells: one of 15 litres capacity

BASKETS PROVIDED:
- 1 large basket (250 x 280 x 100 mm).

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration within 14 Days of Invoice

Specifications

Net Weight (Kg) - 110
Width (mm) - 800
Depth (mm) - 730
Height (mm) - 850
Packing Width (mm) - 840
Packing Depth (mm) - 822
Packing Height (mm) - 1255
Power - 50Hz; 230V - 1N; 2A; 0.1 kW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Product Attachments

CAD_Drawing

English_F-G7215_LPG_Gas_Spec

English_F-G7215_Natural_Gas_Spec

F-G7215 Product Image

Spare_Part_Manual_F-G7115_G7215__2020-05

User_manual_F-GXXX__2021-07_EN

3_19074791_F-G7215_RFA

Fagor Industrial Kore Generation
