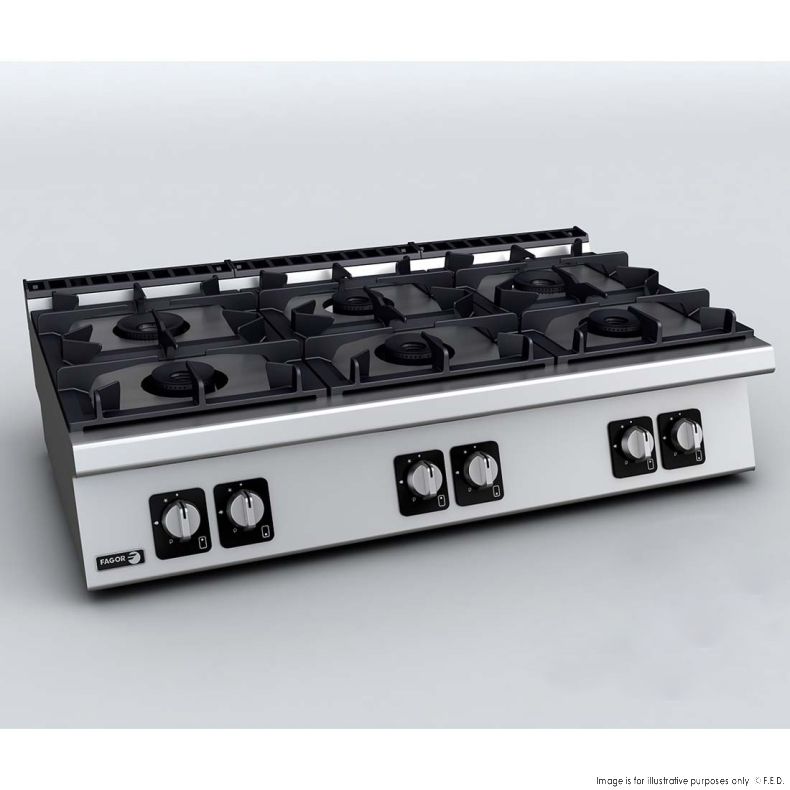

Fagor Kore 700 Series Bench Top 6 Gas Burners - C-G760H

Bench Top 6 Gas Burners - C-G760H

• Deep-drawn surface tops manufactured in 1.5 mm thick AISI-304 stainless steel.
• Laser-cut joints and automatic welding. Hidden screws.
• 397 x 580 mm double grates (397 x 290 mm for each burner) enabling the use of large pots and pans. The reduced distance of 75 mm between the central bars makes it possible to use pots with a very small diameter (8 cm), avoiding the risk of smaller pans tipping over.
• The grates are made of RAAF enamelled cast iron (resistant to alkaline and acid products, fire and high temperatures).
• Double-crown burners and diffusers made of nickel-plated cast iron which guarantee an even distribution of heat from the flame to the base of the pans, even for large pans. This therefore prevents heat from building up in a specific point and optimises energy transfer to the product.
• Burners are easy to position.
• Low-consumption pilot light and thermocouple located within the body of the burner for greater protection.
• Flexible stainless-steel gas pipes, facilitating internal manipulations in order to make repairs easier.
• Controls with a protective support base and system to prevent water infiltration.
• High-temperature enamelled cast iron flue protector which is flush with the grates therefore improving manoeuvrability, supporting larger containers and increasing the usable surface area.
• Access to components from the front.
• Six burners on the worktop with different powers, enabling the use of different pots and pans and different foods: 6 x 8,0 kW (Ø 120 mm).

OPTIONAL ACCESSORIES

• Frying plate to place on 5.25 kW burners.
• Water column.

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration

Specifications

Net Weight (Kg) - 78
Width (mm) - 1200
Depth (mm) - 730
Height (mm) - 290
Packing Width (mm) - 1240
Packing Depth (mm) - 822
Packing Height (mm) - 535
Power - 175.68mj/h; 48kW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Product Attachments

CAD_Drawing_C-G760-H

English_C-G760_H__LPG_Spec

English_C-G760_H__Natural_Gas_Spec

C-G760 Product Image

User_instruction_manual_C-G9XX_OP_G7XX_H_GB761_H_RH__2020

3_19068110_C-G760-H_RFA
