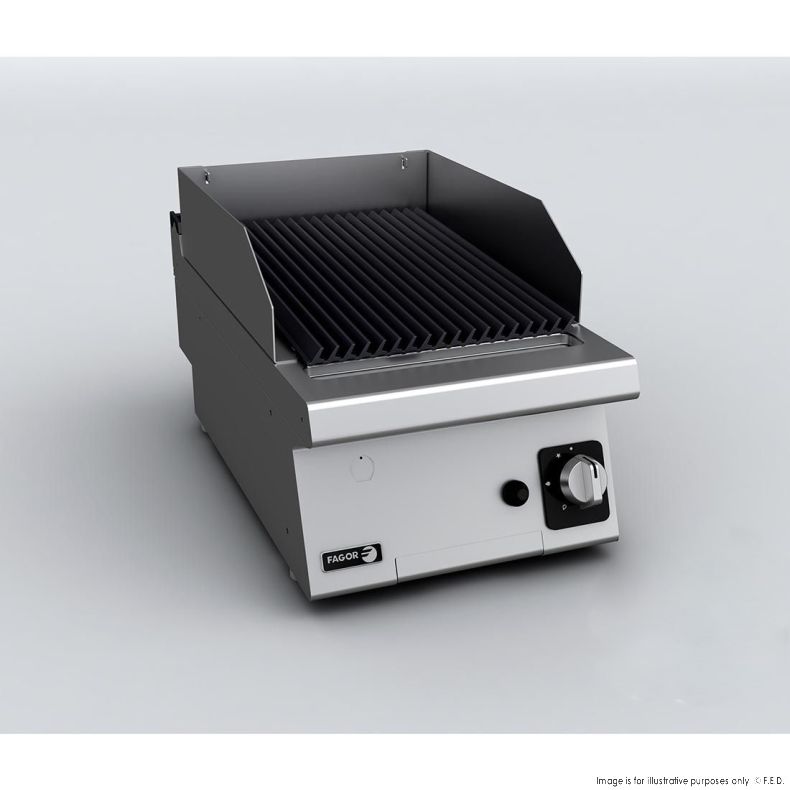

Fagor Kore 700 Series Bench Top Gas Chargrill - B-G705

Bench Top Gas Chargrill - B-G705

• Stamped surface tops manufactured in 1.5 mm thick AISI-304 stainless steel
• Laser-cut joints and automatic welding. Hidden screws.
• Fitted with an opening to collect cooking grease and a tray to store it.
• Machines are fitted with removable 130 mm high guards to prevent splashes, made of stainless steel.
• High temperature enamelled cast iron flue protector.
• Access to the components from the front.
• Machines with IPX5 grade water protection.
• Mild steel grills, dismountable without the need for tools, in 170 mm wide sections.
• The mild steel grills are reversible, with different finishes on each side:
  ·Tilted and grooved with ridges for meat
  ·Horizontal and flat for fish and vegetables
• These grills reach a very high temperature (400 ºC), meaning that the surface of the product is quickly sealed and inside it remains much juicier.
• Groups of high-efficiency tube burners, (a group of two burners for half-sized module models, two groups for whole module models).
• Independent control for each group of burners via a safety valve with a thermocouple.
• Burners turned on using Piezo electric ignition.
• The burners heat ceramic stones that sit on a supporting rack, so that they can then heat food on the grill.

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration

Specifications

Net Weight (Kg) - 28.5
Width (mm) - 400
Depth (mm) - 730
Height (mm) - 290
Packing Width (mm) - 440
Packing Depth (mm) - 822
Packing Height (mm) - 535
Power - 25MJ/h; 8.1kW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
