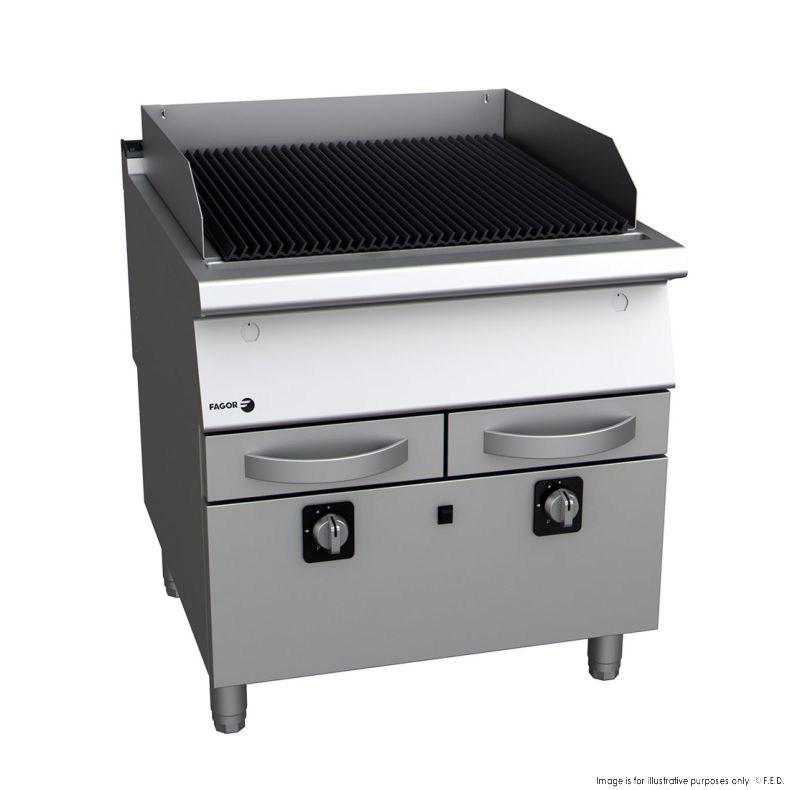

Fagor Kore 700 Series Bench Top Gas Chargrill - B-G7101

Bench Top Gas Chargrill - B-G7101

• Stamped surface tops manufactured in 1.5 mm thick AISI-304 stainless steel
• Laser-cut joints and automatic welding. Hidden screws.
• Fitted with an opening to collect cooking grease and a tray to store it.
• Machines are fitted with removable 130 mm high guards to prevent splashes, made of stainless steel.
• High temperature enamelled cast iron flue protector.
• Access to the components from the front.
• Machines with IPX5 grade water protection.
• Mild steel grills, dismountable without the need for tools, in 170 mm wide sections.
• The mild steel grills are reversible, with different finishes on each side:
• Tilted and grooved with ridges for meat ·Horizontal and flat for fish and vegetables
• These grills reach a very high temperature (400 ºC), meaning that the surface of the product is quickly sealed and inside it remains much juicier.
• Groups of three high-efficiency tube burners, with a radiant deflector (a group of three burners for halfsized module models, two groups for whole module models).
• Independent control for each group of burners via a safety valve with a thermocouple.
• Burners turned on using electric multispark ignition. With an access tube for manual ignition.
• The fat collection trays provide the option of adding water into them, and thanks to heat radiated from the gas burners or electrical elements, a low intensity steam is generated, causing the roast to be carried out in a humid environment.



2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration

Specifications

Net Weight (Kg) - 70
Width (mm) - 800
Depth (mm) - 730
Height (mm) - 850
Packing Width (mm) - 822
Packing Depth (mm) - 840
Packing Height (mm) - 1255
Power - 50mj/h; 16.2kW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
