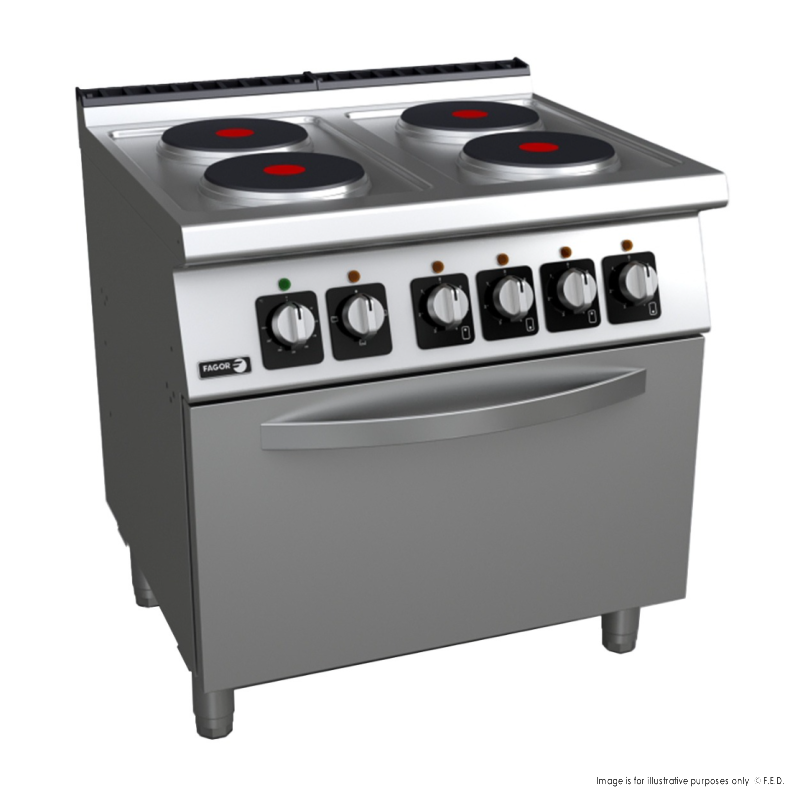

Fagor Kore 700 Series Electric 4 Burners with oven C-E741

Fagor Kore 700 Series Electric Cook Top and Oven SS C-E741

Key Features

• Pressed surface tops manufactured in 1.5 mm thick AISI-304 stainless steel, with rounded edges, designed to prevent spilt liquid from pans entering the interior of the oven.
• Deep-drawn surface top with rounded corners for easy cleaning.
• Laser-cut joints and automatic welding. Hidden screws.
• Power regulation via selector with 7 positions.
• Protection against overheating for each plate.
• High-temperature enamelled cast iron flue protector.
• Access to components from the front.
• Easy connection and compliance with health standards.
• Machines with IPX5 grade water protection.

ELECTRIC STATIC OVEN GN 2/1:

• Static electric oven with dimensions GN 2/1 user-friendly, with controls positioned on the upper panel for better ergonomy.
• Cooking chamber made entirely of stainless steel which makes cleaning easier and ensures greater hygiene. - Trays are inserted sideways which improves manoeuvrability.
• Heating through stainless steel heating elements with a selector switch for operation of the upper and/or inner part.
• Heating power of 6 kW.
• Thermostatic valve for temperature control (125 - 310 °C).
• Rails on three height levels to offer different cooking options.
• Rails with an anti-tipping system to prevent trays from overturning.
• Cast iron oven floor which guarantees better performance and uniform heat distribution.
• Fibreglass closing seal to improve the thermal efficiency of the oven and ensure its durability.
• Deep-drawn oven frame and inner door, ensuring a better oven closure.
• Detachable oven door to facilitate repairs.
• Stainless steel feet with adjustable height.
• Four round cast iron hot plates of 223 mm diameter, with 2,6 kW power, hermetically fixed to the deep-drawn surface top.

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration

Specifications

Net Weight (Kg) - 90
Width (mm) - 800
Depth (mm) - 730
Height (mm) - 850
Packing Width (mm) - 840
Packing Depth (mm) - 822
Packing Height (mm) - 1255
Power - 415V, 16.4kW/3~N
Warranty - 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice

Product Attachments

CAD_Drawing

English_C-E741_Spec

C-E741 Product Image

Spare_Part_Manual_C-E741_E761Q__2020-03

E900_E700__product_detail_and_manual

3_19068498_C-E741_RFA

Fagor Industrial Kore Generation
