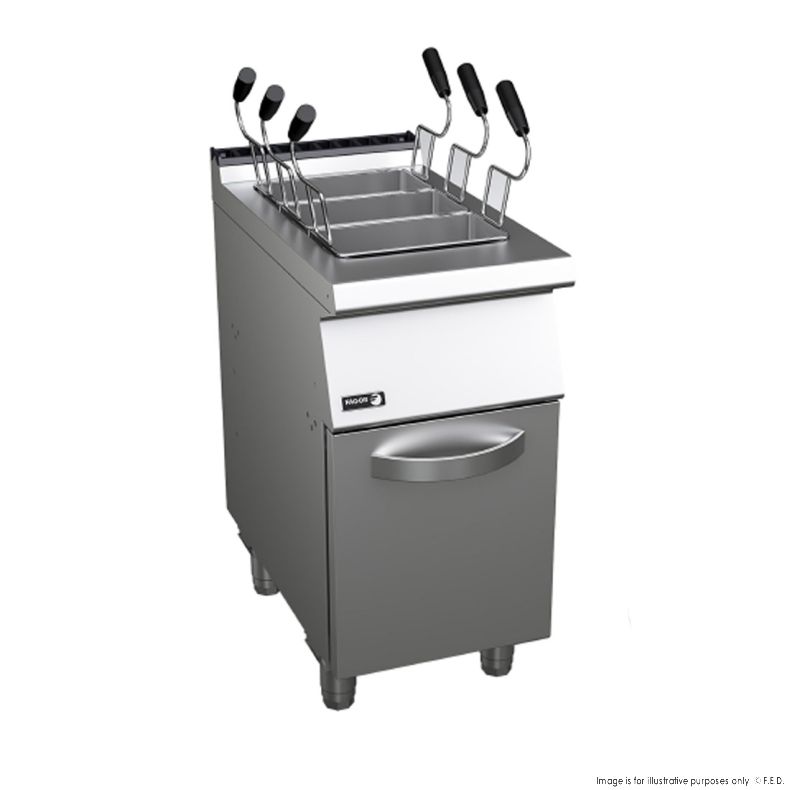

Fagor Kore 700 Series Gas Pasta Cooker with 3 Baskets - CP-G7140

Gas Pasta Cooker with 3 Baskets - CP-G7140

• Surface tops manufactured in 1.5 mm thick AISI-304 stainless steel.
• Laser-cut joints, automatic welding and polishing. Hidden screws.
• 1.5 mm thick AISI-316L stainless steel wells built into the surface top.
• The well is filled through the inlet solenoid valve with a two-position switch: average and high-speed filling.
• Well drainage through a mechanical ball valve which is resistant to high temperatures and has a safety overflow.
• Automatic safety system to stop the current if the water runs out.
• Controls with a protective support base and system to prevent water infiltration.
• Machines with IPX5 grade water protection.
• GN-1/1 wells, with 40 litre capacity (they can be used with different positions of baskets of different sizes).
• High-performance stainless-steel burner located outside of the well with a combustion chamber that enables heating of the base and sides of the well (up to the minimum filling level).
• Burner ignition through electronic spark igniter. With an access tube for manual ignition.
• Heating controlled through safety valve."

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration

Specifications

Net Weight (Kg) - 55
Width (mm) - 400
Depth (mm) - 730
Height (mm) - 850
Packing Width (mm) - 440
Packing Depth (mm) - 822
Packing Height (mm) - 1255
Power - 230V - 1N; 2A; 0.1kW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Product Attachments

CAD_Drawing

English_CP-G7140_LPG_Gas_Spec

English_CP-G7140_Natural_Gas_Spec

CP-G7140 Product Image

Spare_Part_Manual_CP-G7140_G7240__2020-03

User_manual_CP-G900_G700__2021-02

3_19074764_CP-G7140_RFA
