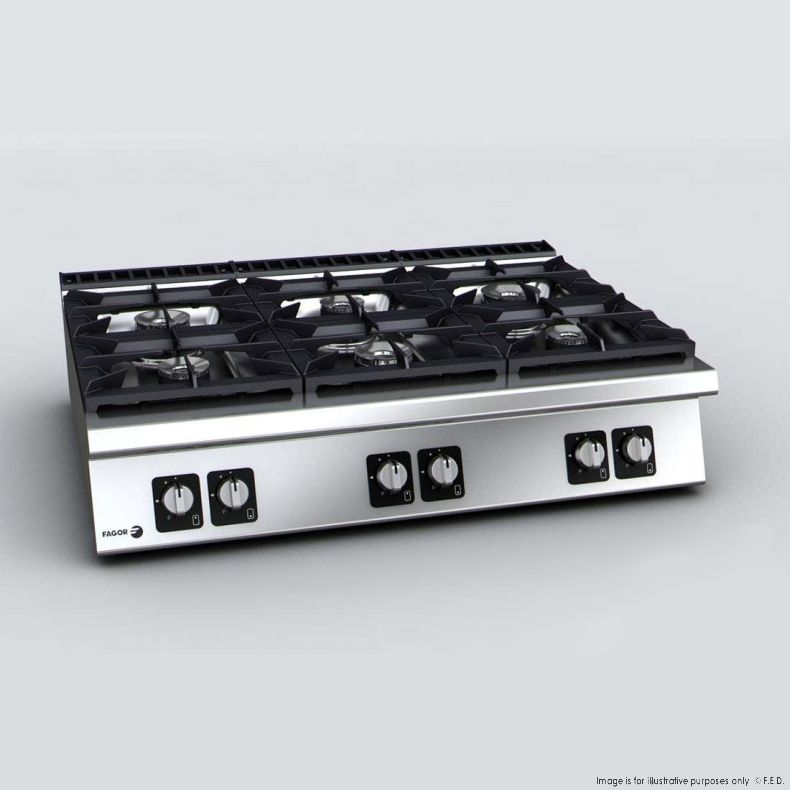

Fagor Kore 900 Series Gas 6 Burner - C-G960H

Fagor Kore 900 Series Gas 6 Burner - C-G960H

8KW burner X 5

10.2KW burner x 1

• NG or LPG
• Surface tops manufactured in 2mm thick 304 stainless steel
• Reach a high temperature (400°C)
• Hobs with dimensions 397 x 350 mm allowing the use of large pans and pots.
• The hobs are manufactured in RAAF enamelled cast iron
• Double crown burners and diffusers in nickel-plated cast iron
• Burners of different power ratings to adapt to the containers and their use with different foodstuffs
• Burners slot back in with no way of confusing their position
• Low consumption pilots and thermocouples positioned with in body of the burner for greater protection
• Controls set on a protective base with a system against water infiltration
• Access the components from the front

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration

Specifications

Width (mm) - 1200
Depth (mm) - 930
Height (mm) - 290
Packing Width (mm) - 1240
Packing Depth (mm) - 1022
Packing Height (mm) - 535
Power - 50.2KW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
