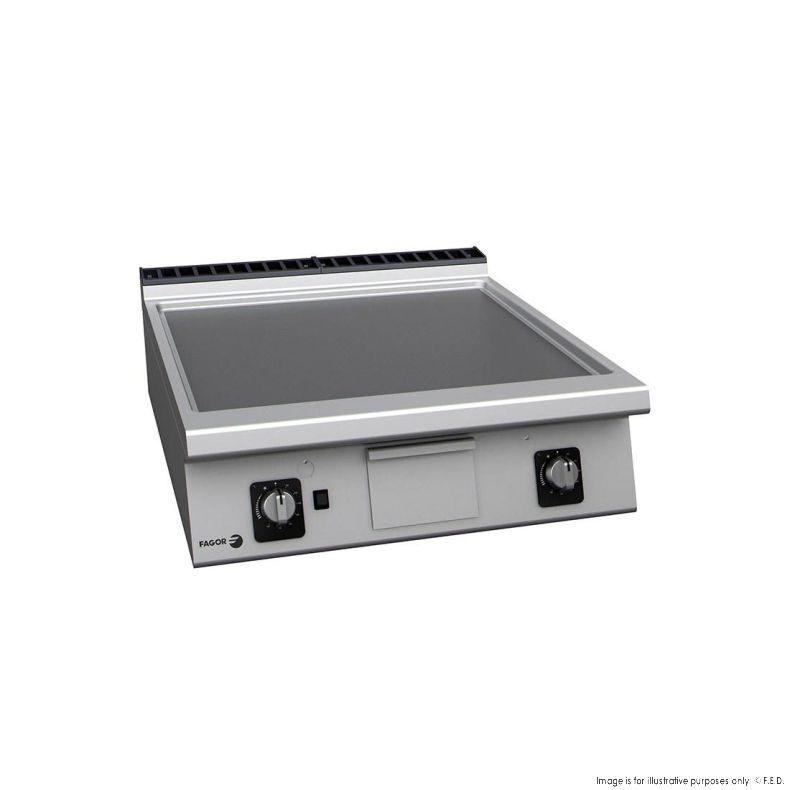

Fagor Kore 900 Series Gas Fry Top - FT-G910L

Fagor Kore 900 Series Gas Fry Top with Thermostatic Control - FT-G910L

Plate area x 2

Size: 735 x 640 mm

Smooth hot plate

• NG or LPG
• Surface tops manufactured in 2mm thick 304 stainless steel
• Laser-cut joints, automatic welding and polishes. Screws hidden from view.
• Fry-tops manufactured in 20mm thick mild steel, high powered and with rapid temperature attainment.
• With Thermostatic temperature control between 100 and 300°C
• The whole module fry-tops come with independent heating zones
• Rapid reaction and recovery times of the fry-top temperature
• The fry-tops are integrated into the funnelled surface top
• Fry-top tilted towards the front to facilitate fat and liquid collection
• High temperature enamelled cast iron flue protector
• Access the components from the front
• Machines with IPX5 grade water protection

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration

Specifications

Width (mm) - 800
Depth (mm) - 930
Height (mm) - 290
Packing Width (mm) - 840
Packing Depth (mm) - 1022
Packing Height (mm) - 535
Power - 18.5KW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Product Attachments

CAD_Drawing

Spec_FT-G910L_LPG

Spec_FT-G910L_NG

FT-G910_L Product Image

Spare_Parts_FT-G905_910__2017-10

User_Manual_cad_drawing_FT-G905__G910__2017

3_QF_FAGOR_FT-G910L_RFA

Fagor Industrial Kore Generation
