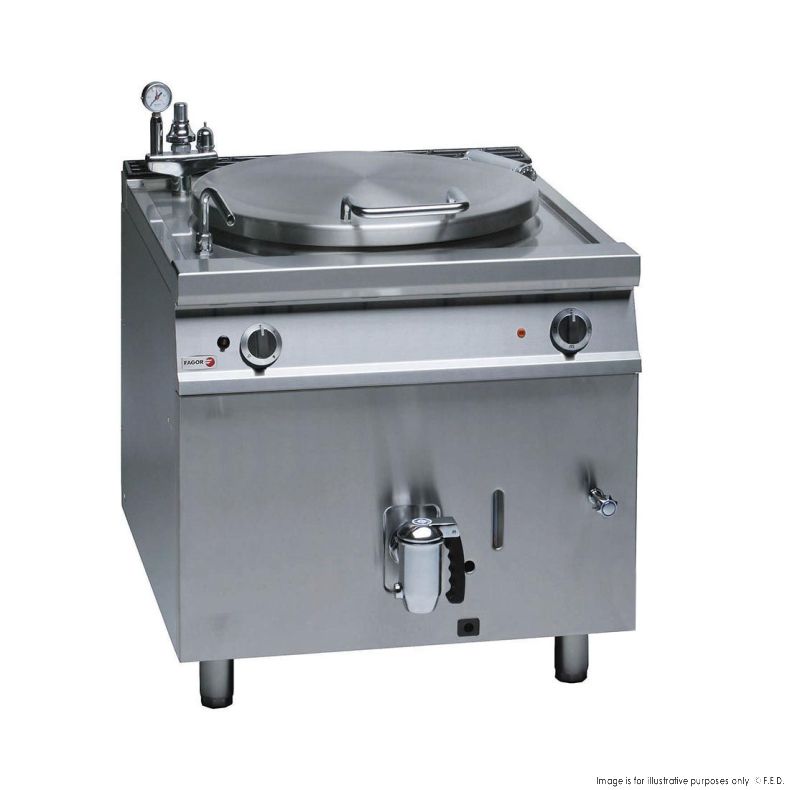

Fagor Kore 900 Series Indirect Heating Boiling Pan M-G915BM

Fagor Kore 900 Series Indirect Heating Boiling Pan M-G915BM

• Natural Gas
• Surface tops manufactured in 2mm thick AISI-304 stainless steel
• Laser-cut joints, automatic welding and polishes. Screws hidden from view
• Double walled lid balanced by means of a hinge with front handle, with diagonal opening to 75° which allows the lid to be kept open in any position
• Well stamped into the surface top by robotic welding, manufactured in 304 S/S, with the bottom of the well in AISI-316L stainless steel.
• Well filing with hot or cold water by electrovalve, activated with a single switch located on the front panel
• Well emptying by 2" safety valve with handle in athermic material and safe and effortless handling.
• Robust and reliable filter for draining the well manufactured in AISI-304 S/S. Easily extractable.
• Controls with protective base and system against water infiltration
• High temperature enameled cast iron flue protector.
• Access to the components from the front
• Machines with IPX5 grade water protection
• Group of optimised combustion stainless steel tubular burners, controlled by energy regulator and by pressure switch
• Control by energy regulator and by pressure switch, permitting lower water and energy consumption
• Ignition of group of burners by spark train

Specifications
