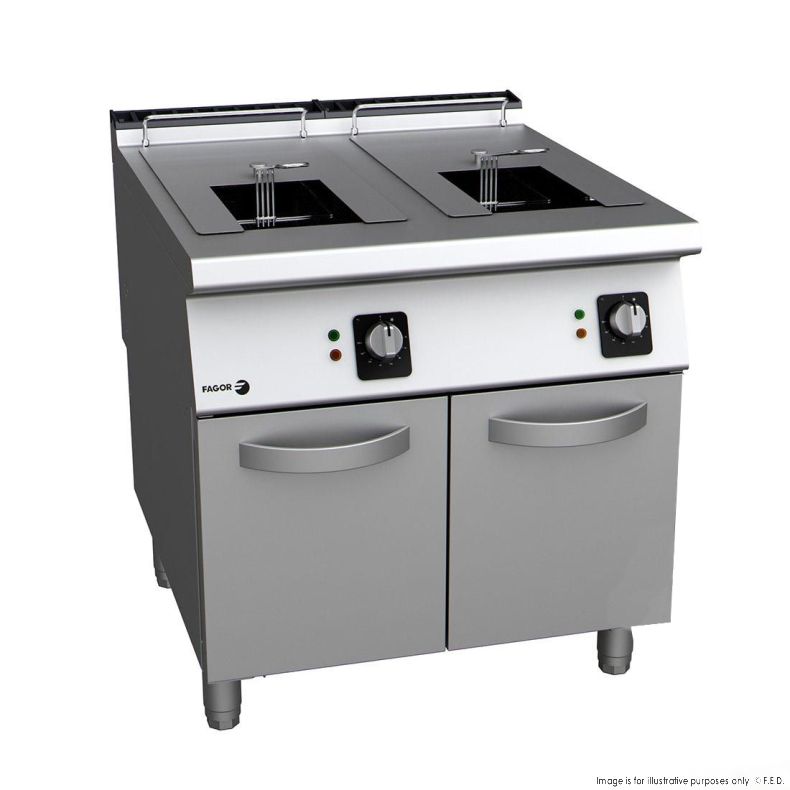

Fagor Kore 900 Series LPG Deep Fat Fryer - F-G9215LPG

Fagor Kore 900 Series LPG Deep Fat Fryer - F-G9215LPG

2 x 15L Tanks

2 Large Baskets (260 x 330 x 100 mm)

• Surface tops manufactured in 2mm thick 304 stainless steel
• Laser-cut joints, automatic welding and polishes. Screws are hidden from view.
• Wells stamped into the surface top
• Cold zone in the lower part of the well, which helps to maintain the quality and characteristics of the oil for longer use.
• Thermostatic temperature control between 60 and 200°C
• Gas models with 3 longitudinal heating  tubes integrated into the well
• High-efficiency gas burners
• High-power machines which heat up very fast with a high power:liter ratio (up to 1.00kW/litre in gas models).
• Ignition by spark train for gas models
• Safety thermostat
• Unloading  of oil from the well by means of robust and reliable ball valve, resistant to high temperatures.
• With individual lids for each well
• High temperature enameled cast iron flue protector
• Access the components from the front
• Machines with IPX5 grade water protection

OPTIONAL ACCESSORIES

• 21 litre fryers: large basket (260 x 330 x 100 mm)
• 15 litre fryers: small basket (125 x 280 x 100 mm)

Specifications

Net Weight (Kg) - 160
Width (mm) - 800
Depth (mm) - 930
Height (mm) - 850
Packing Width (mm) - 840
Packing Depth (mm) - 1020
Packing Height (mm) - 1130
Power - 108 MJ/h ; 30kW

Product Attachments

CAD_Drawing

Spec_F-G9215_LPG

Spec_F-G9215_NG

F-G9215 Product Image

Spare_Parts_F-G9115_9121_9215_9221__2018-10

User_manual_F-GXXX__2021-07_EN
