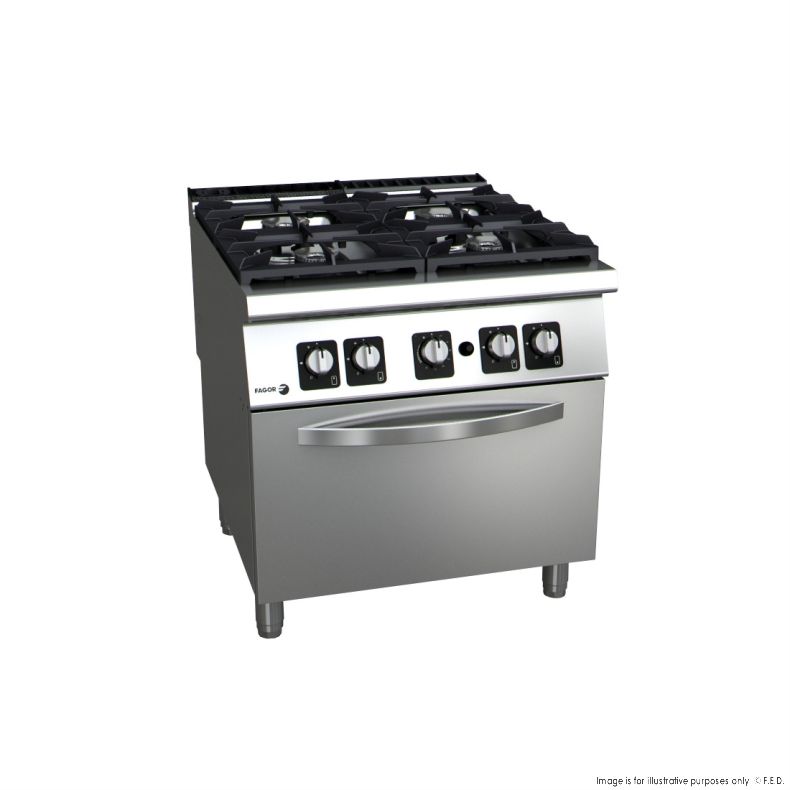

Fagor Kore 900 Series Natural Gas 4 Burner with Gas Oven - C-G941

Fagor Kore 900 Series Natural Gas 4 Burner with Gas Oven - C-G941

5.25KW burner X 2

8KW burner x 1

10.2KW burner x 1

Oven size: GN-2/1

Oven power: 8.6KW

• Surface tops manufactured in 2mm thick 304 stainless steel
• Hobs with dimensions 397 x 350 mm allowing the use of large pans and pots.
• The hobs are manufactured in RAAF enamelled cast iron
• Double crown burners and diffusers in nickel-plated cast iron
• Burners of different power ratings to adapt to the containers and their use with different foodstuffs
• Burners slot back in with no way of confusing their position
• Low consumption pilots and thermocouples positioned with in body of the burner for greater protection
• Controls set on a protective base with a system against water infiltration
• Access the components from the front

Specifications

Width (mm) - 800
Depth (mm) - 930
Height (mm) - 850
Packing Width (mm) - 840
Packing Depth (mm) - 1020
Packing Height (mm) - 1130
Power - 37.3KW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Product Attachments

CAD_Drawing

Spec_C-G941__LPG

Spec_C-G941__NG

C-G941 Product Image

Spare_Parts_C-G941_961_OP__2018-11

User_Manual_cad_drawing_C-G910_911_920_940_941_960_961_OP_H__2017

3_QF_FAGOR_C-G941 RFA
