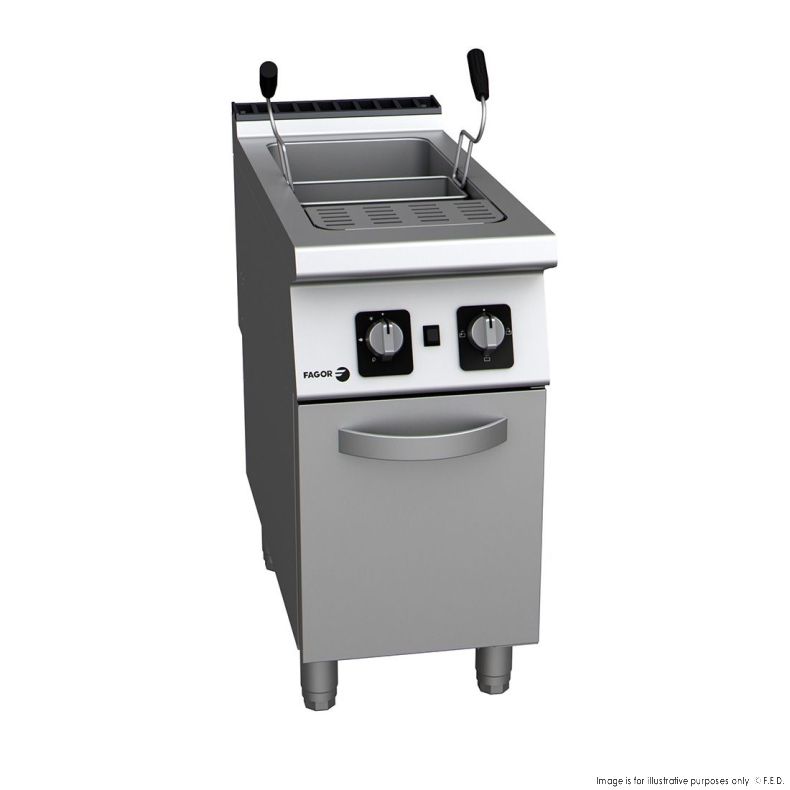

Fagor Kore 900 Series Pasta Cooker - CP-G905

Fagor Kore 900 Series Pasta Cooker - CP-G905

Grill x 1

Size: GN-1/1

Basket: 3 x 1/3

• NG or LPG
• Surface tops manufactured in 2mm thick 304 stainless steel
• Tanks with 1/1 dimensions, capacity 40 litres. Accommodate different configurations of different sized baskets
• Standard configuration: three 1/3 type baskets per tank
• Draining of tank by means of high temperature resistant mechanical ball valve with safety overflow
• Automatic safety system that breaks the circuit if the water runs out
• Controls set on a protective base with a system against water infiltration
• Access the components from the front
• Machines with IPX5 grade water protection
• Gas models with stainless steel burner situated on the outside of the tank with combustion chamber that allows the tank to be heated from the bottom and sides
• Heating controlled by safety valve

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration

Specifications

Width (mm) - 400
Depth (mm) - 930
Height (mm) - 850
Packing Width (mm) - 440
Packing Depth (mm) - 1020
Packing Height (mm) - 1260
Power - 16KW
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Product Attachments

CAD_Drawing

Spec_CP-G905_NG

CP-G905 Product Image

Spare_Parts_CP-G905_910__2018-10

User_Manual_cad_drawing_CP-G905_910__2017

3_QF_FAGOR_CP-G905
