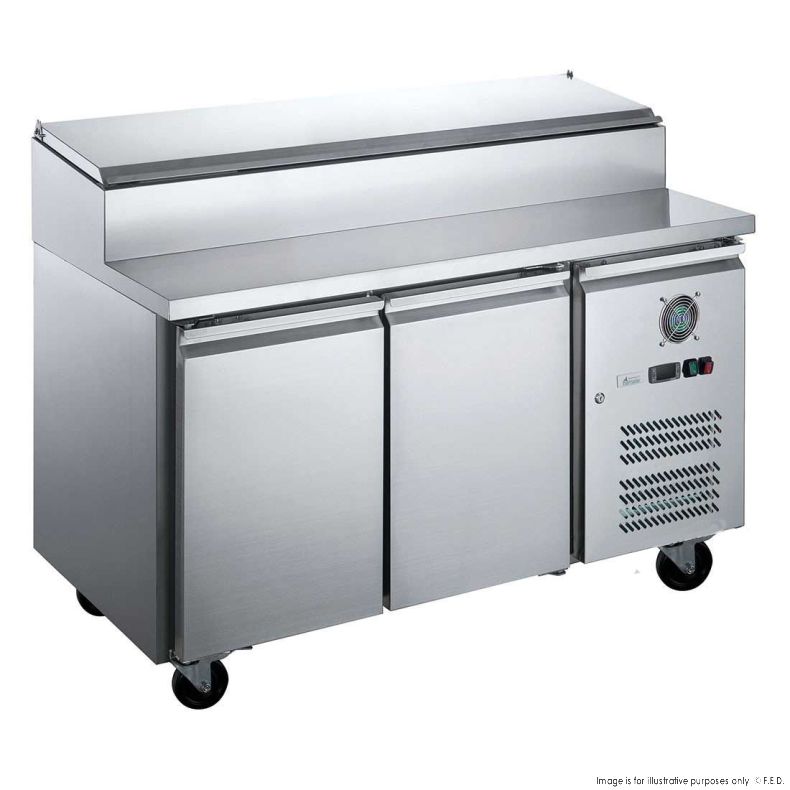

FED-X S/S Two Door Sandwich Counter - XSS8C15S2V

FED-X S/S Two Door Sandwich Counter - XSS8C15S2V

• Net Capacity: 390L

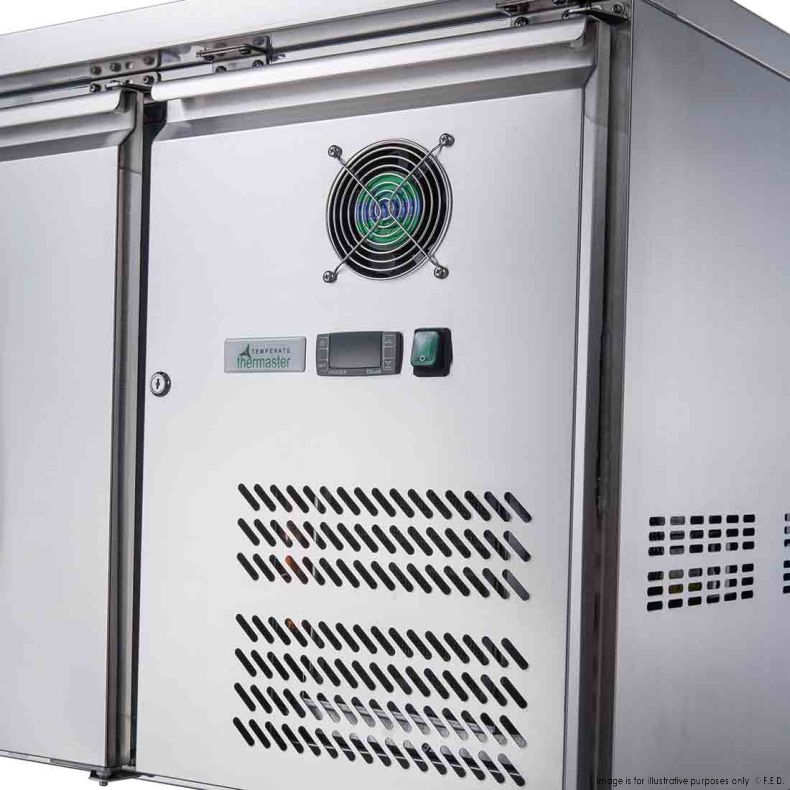

• Cooling System: Fan forced cooling
• Temperature range: +2~+8°C
• Compressor: Cubigel
• Controller: Dixell
• Ambient Temperature: 43°C
• RH: 40%
• Stainless steel interior and exterior with rounded corners for easy cleaning
• Compatiable for 1/3 GN Pan up to 150mm deep

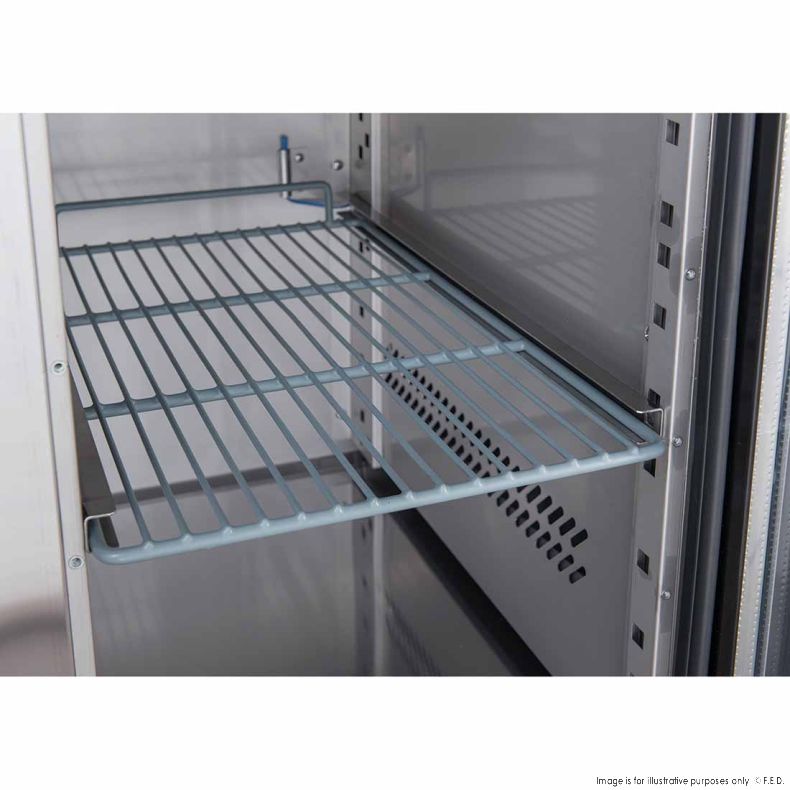

• 1 shelf per door,  GN1/1 pan compatible

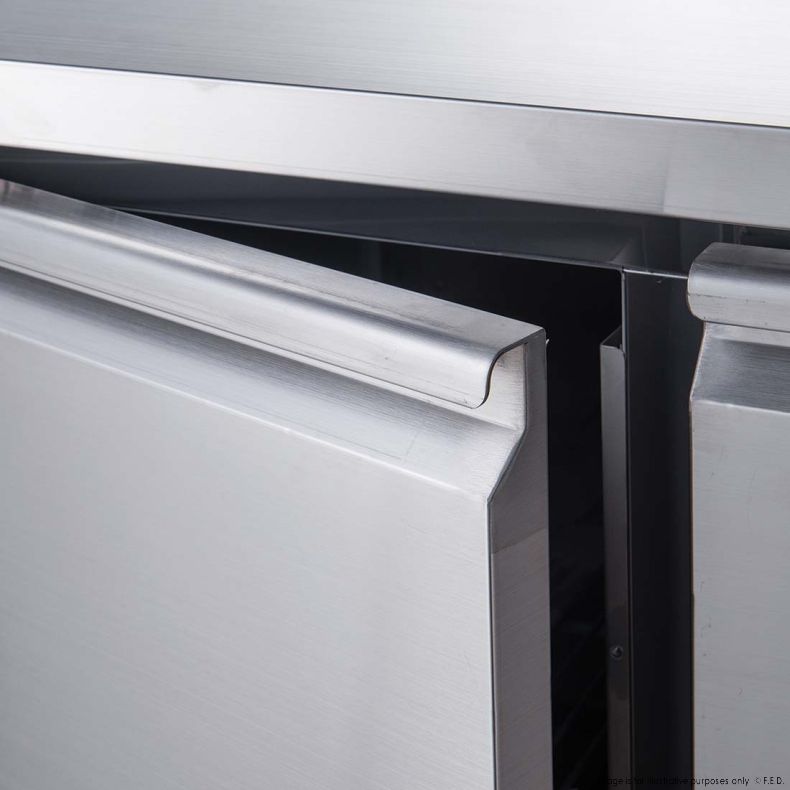

• Self-closing doors with heavy duty magnetic door seals
• 60mm HFCs and CFCs free foam body insulation
• Tropicalised for Australian conditions

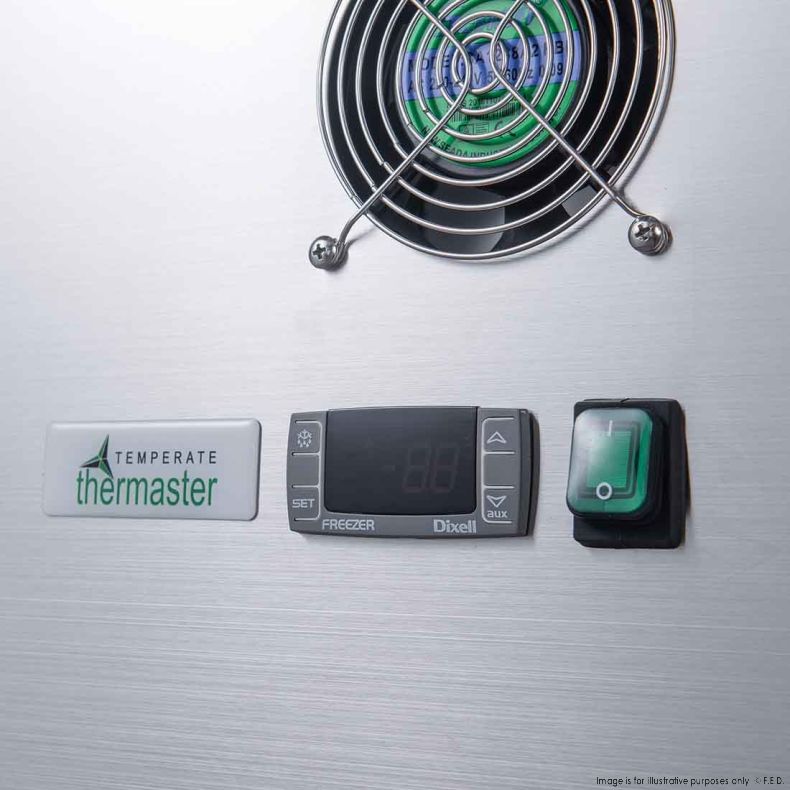

• User friendly Digital controls
• Rapid recovery rate
• Ebm-papst evaporator and condenser fans

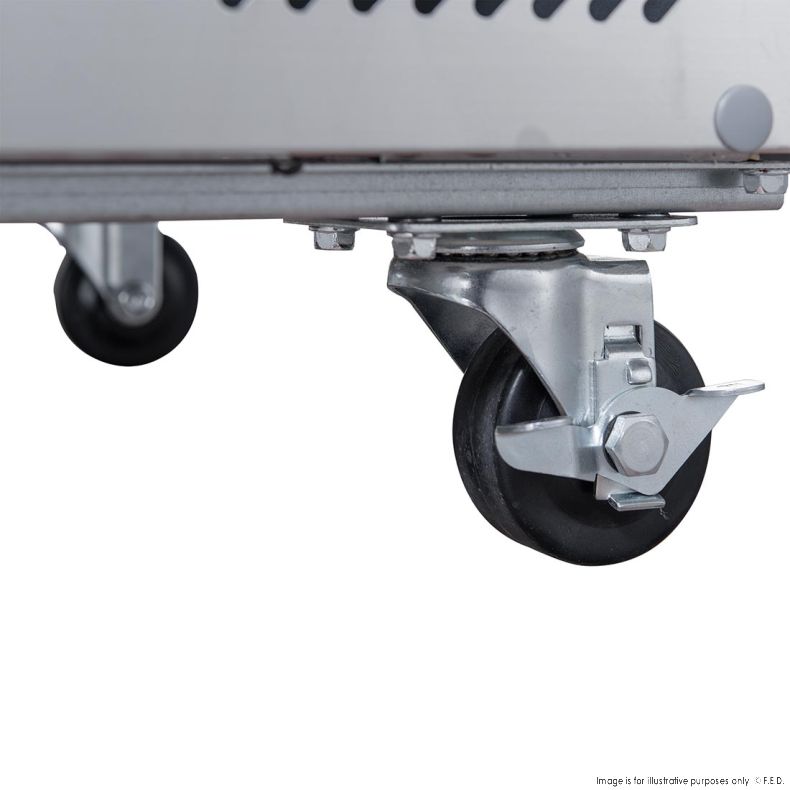

• Heavy duty castors with front wheel brakes
• Weight loading per shelf: 40kg
• Refrigerant: R290
• Dimensiona (Internal): 949mm W x 680mm D x 564mm H
• Weight loading per shelf: 40kg
• Refrigerant: R290
• Dimensions (Internal): 949mm W x 680mm D x 564mm H
• Display top can hold temperature for up to 4 hours from pre-chilled environment

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration within 14 Days of Invoice

Specifications

Net Weight (Kg) - 120
Width (mm) - 1510
Depth (mm) - 800
Height (mm) - 1406
Packing Width (mm) - 1540
Packing Depth (mm) - 830
Packing Height (mm) - 1160
Power - 240V; 50V; 10A; 320W
Warranty - 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Product Attachments

Dwg_drawing_files

XSS8C15S2V_GX-SH2000-800_GN1-3_-HC_Exploded_Diagram

XSS8C15S2V

FED_X_Manual

counter_manuals-HC
