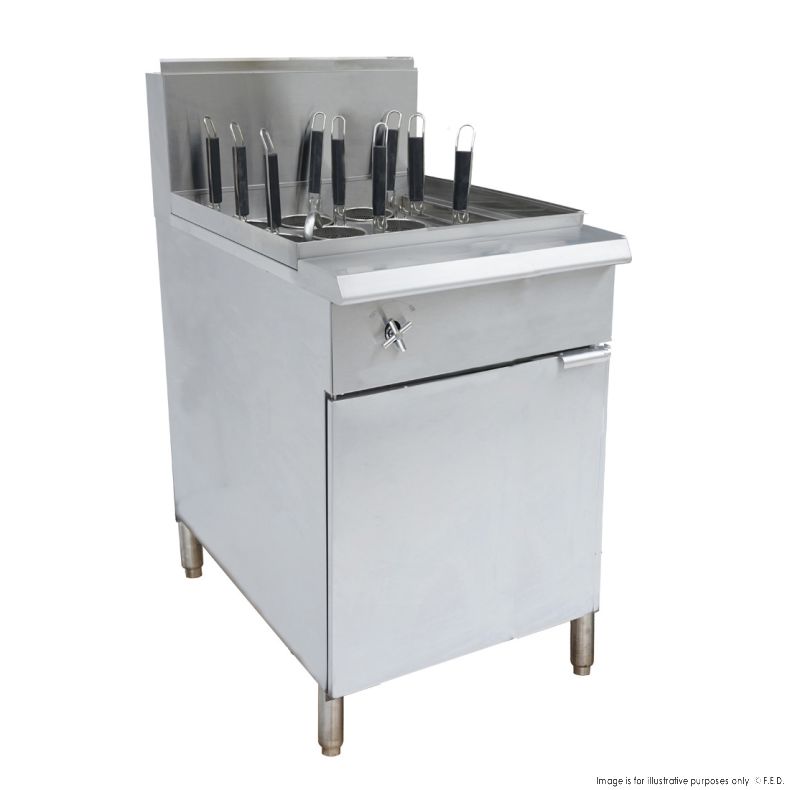

PC150-9LPG - V Pan LPG 9 Baskets Pasta and Noodle Cooker

• Gas Type: LPG
• Stainless steel front and sides
• 34L Water Capacity
• 304 stainless steel tank
• Thermostat control range from 93°C to 204°C
• Open Stainless steel fryer pot with cold zone
• Standby Stainless steel pilot for easy start
• 6 inch stainless steel leg
• Millivolt control valve
• Prompt response thermostat ensures fast temperature recovery
• 232°C hi limit for safety
• One 1/4” full port drain valve
• Open pot design features easy cleaning
• Stainless steel hanger plate at the back
• Nine Ø 125mm x 132mm Baskets
• 1⁄2 inch NPT rear gas connection
• Front positioned water inlet
• Water purifying overflow system to remove excessive starch

2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice

Specifications

Net Weight (Kg) - 101
Width (mm) - 571
Depth (mm) - 860
Height (mm) - 1293
Packing Width (mm) - 540
Packing Depth (mm) - 930
Packing Height (mm) - 1220
Power - 190 MJ/h

Product Attachments

PC150-9 CAD Drawing

PC150-9 Explosive Drawing Part List

PC150-9LPG Rating Label

PC150-9LPG V Pan Gas Fryers Gas pasta cooker Manual
