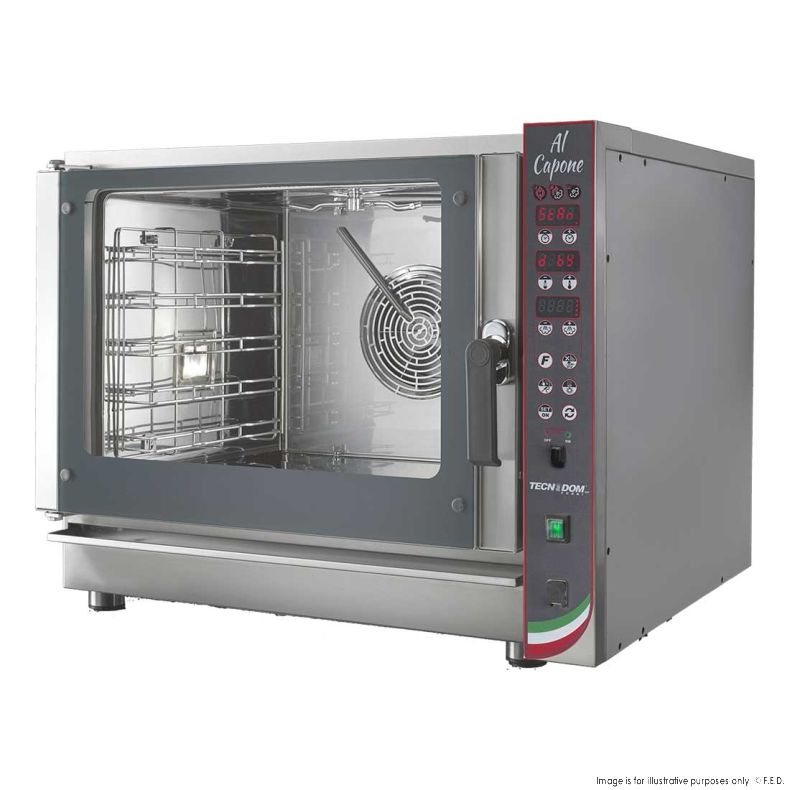

TDC-5VH TECNODOM by FHE 5 Tray Combi Oven

Al Capone 5 Tray Combi Oven

• Auto reversing fans with 4 speed control for even cooking, even when on low fan speeds
• Steam 100 ° C 100% Moisture function
• Delta ΔT; Stove Cooking Mode as well as infinity mode for continuous operation during busy service times
• 99 Programmable and editable recipe options with up to 5 stages for each recipe
• Multi sensing Core Probe as standard
• Auto 4 stage cleaning system with liquid lines as standard

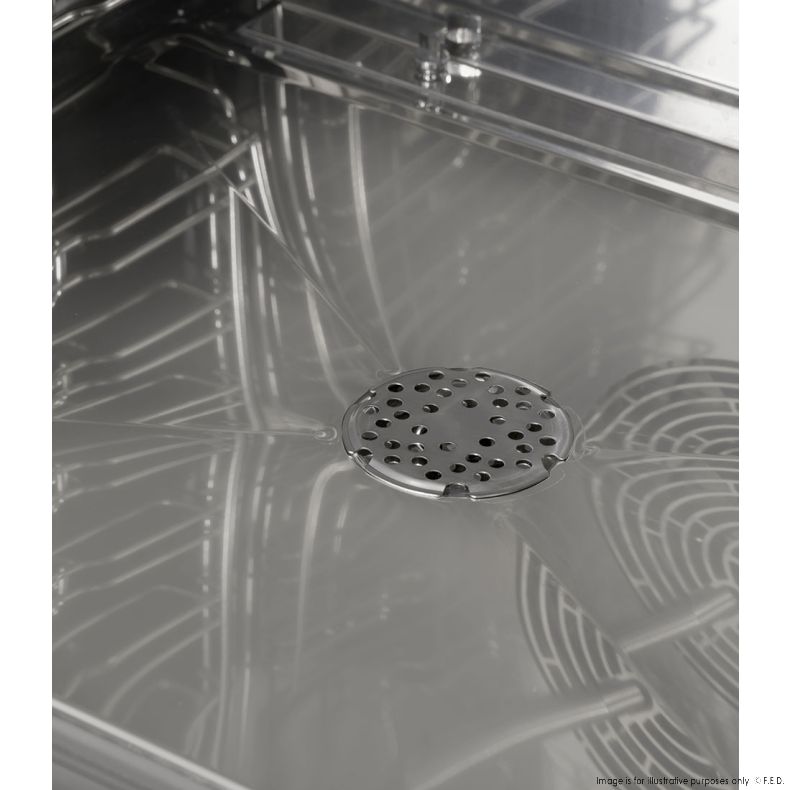

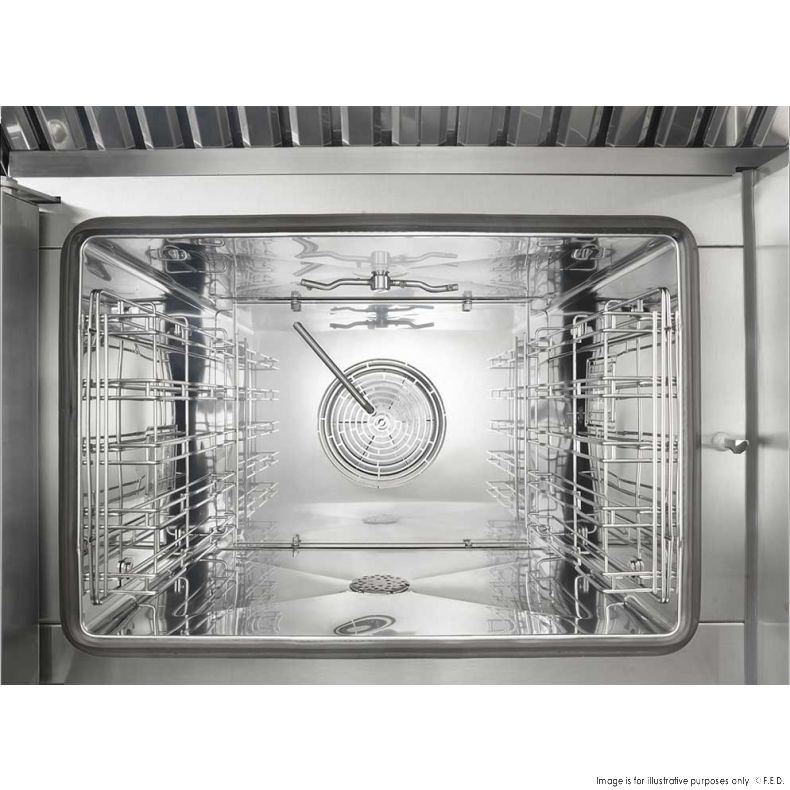

• Full Stainless steel chamber with Removable Tray supports in chromed steel

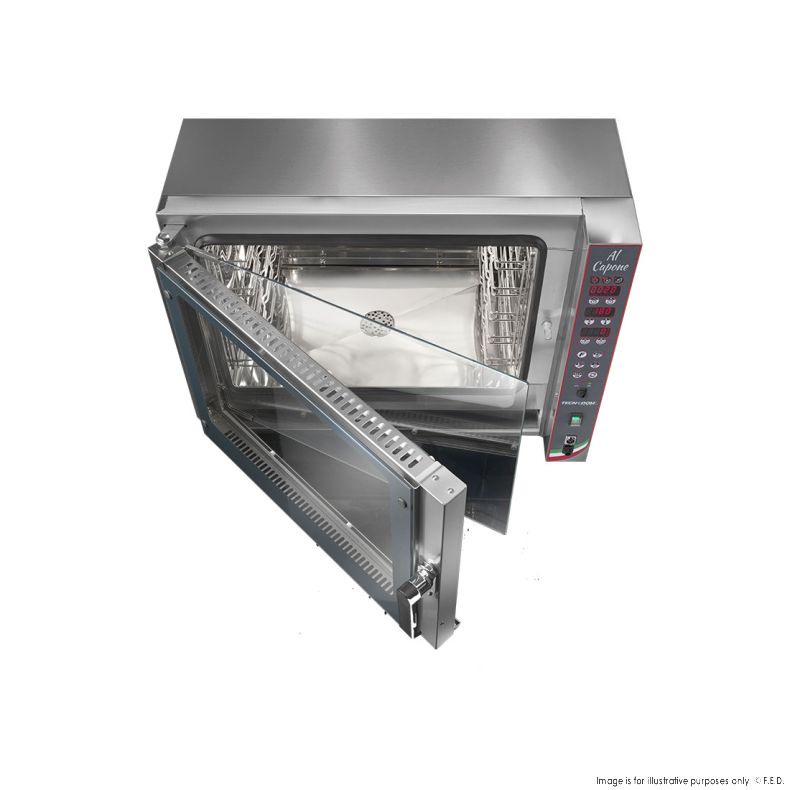

• Two stage door opening to allow steam and hot air to escape without causing operator injury
• Optional integrated Condenser hood

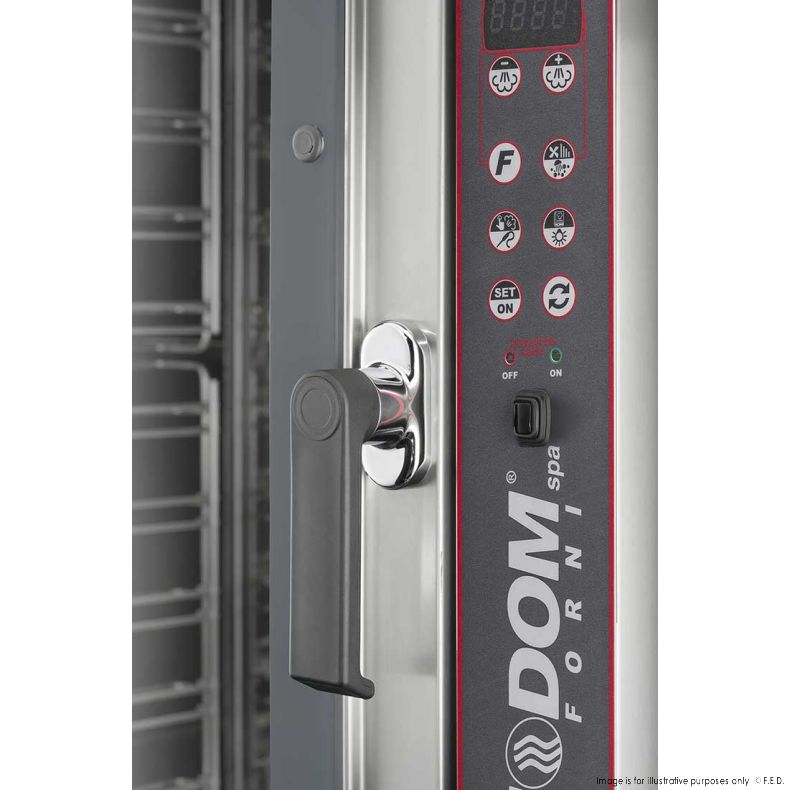

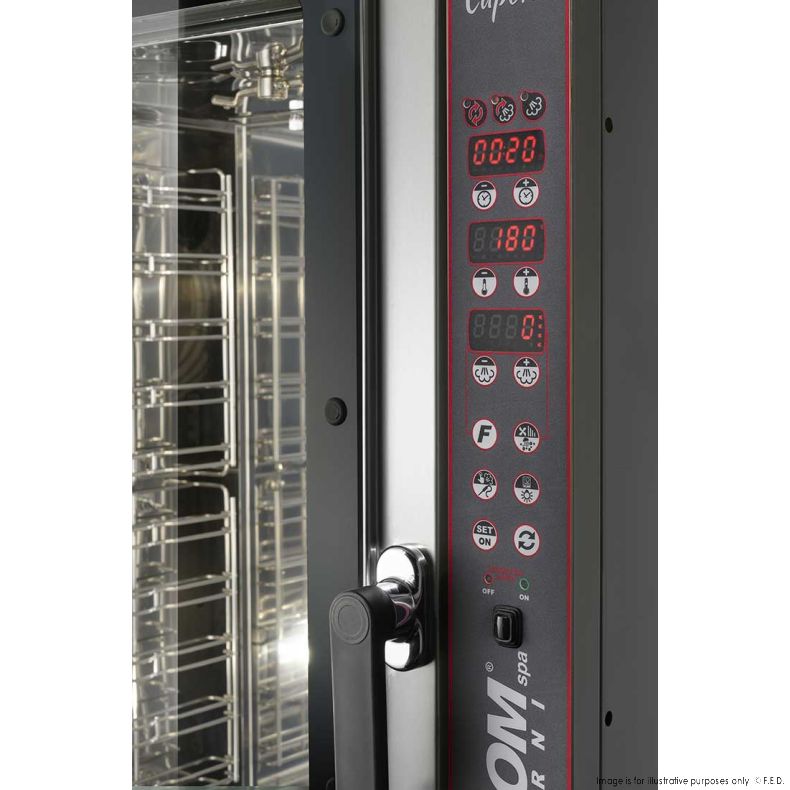

• User friendly digital display with easy to use functions

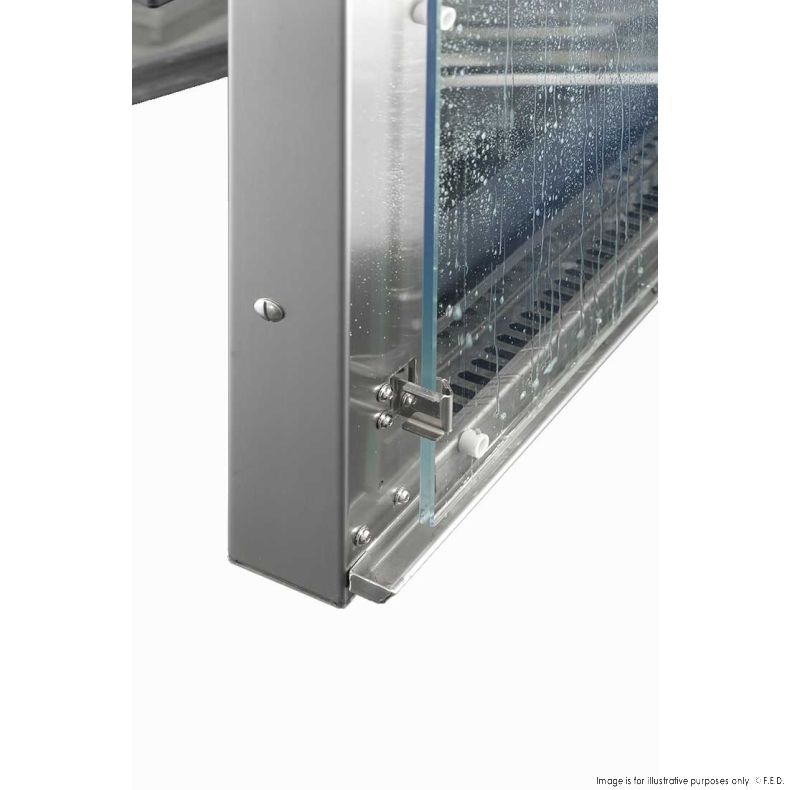

• Twin front glass to reduce heat on the viewing window
• Optional Electric Hood
• Chamber is able to take 600 x 400mm trays as well and GN trays for greater flexibility
• Pans & trays not included
• Convection cooking with variable temperature from 30 °C to 280 °C
• Maximum preheating temperature 280 ° C

1 Year Parts and Labour Warranty

Specifications

Net Weight (Kg) - 89
Width (mm) - 920
Depth (mm) - 840
Height (mm) - 770
Packing Width (mm) - 880
Packing Depth (mm) - 955
Packing Height (mm) - 900
Power - 415V ; 6.45kW / 3N
Warranty - 1 Year Parts and Labour

Product Attachments

TDC_Combi_Oven_Spec

TDC-5VH Spare Parts List

TDC-5VH Spare Parts Complete Diagra

AL_CAPONE_Combi_-_Instruction_Manual
