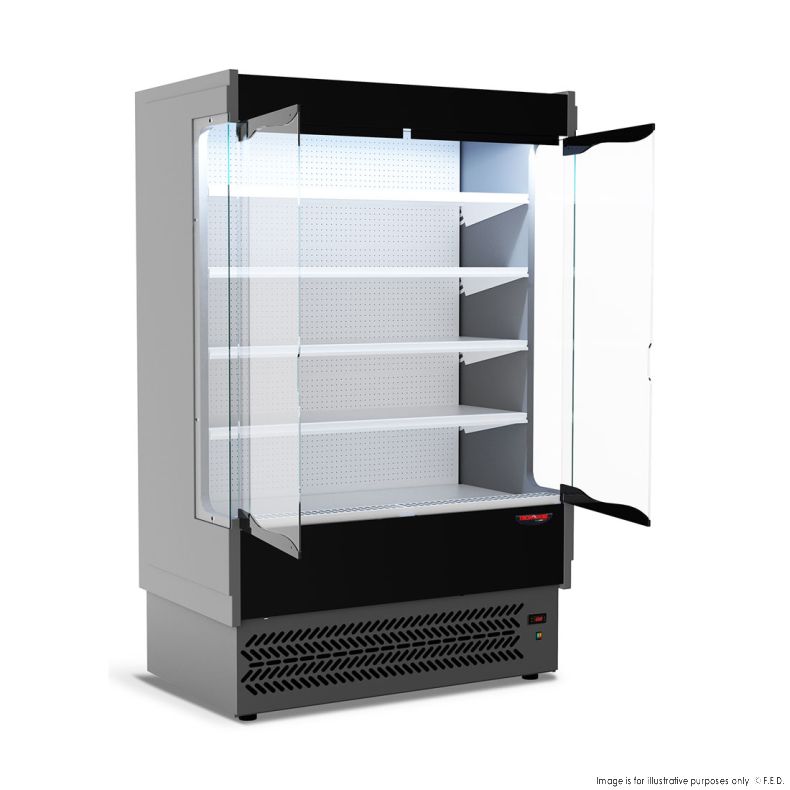

TDVB80-CA-125 Vulcano Supermarket 2 Door Display

Supermarket Refrigerated Display with Glass Doors

Built-in condensing unit, Fitted with Automatic Water Evaporation system with Stainless Steel Serpentine (CG)

Climate Class 4, Ambient of 30°C with 55% RH2 plugs (one extra, separate circuit for the tropical tundish) that runs with a separate element of 1000W, hence the extra 10Amp you find in each model Easy to install and lower maintenance cost

• Ventilated Cooling System
• Castor

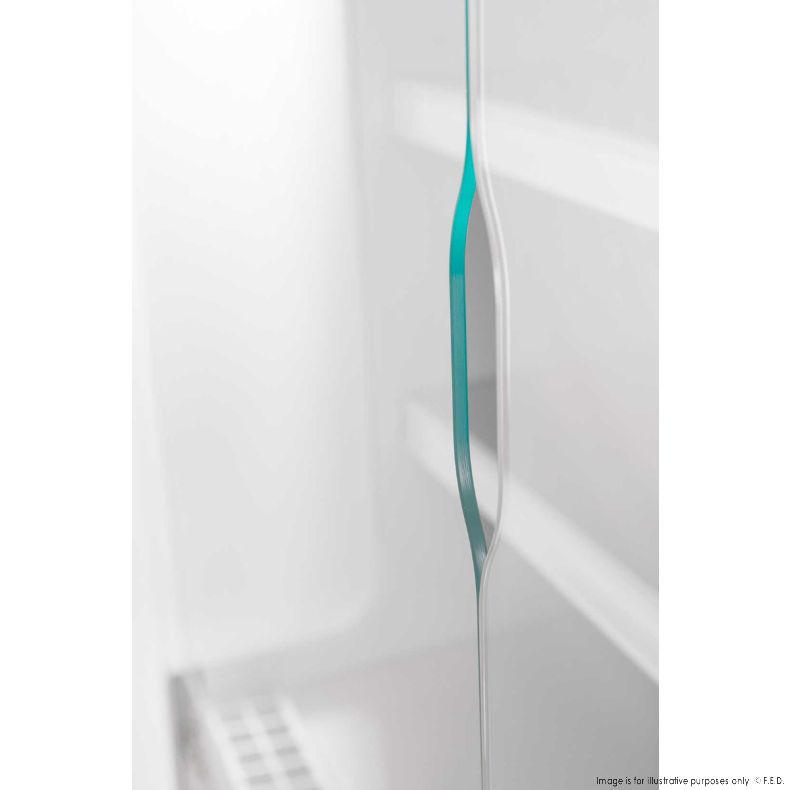

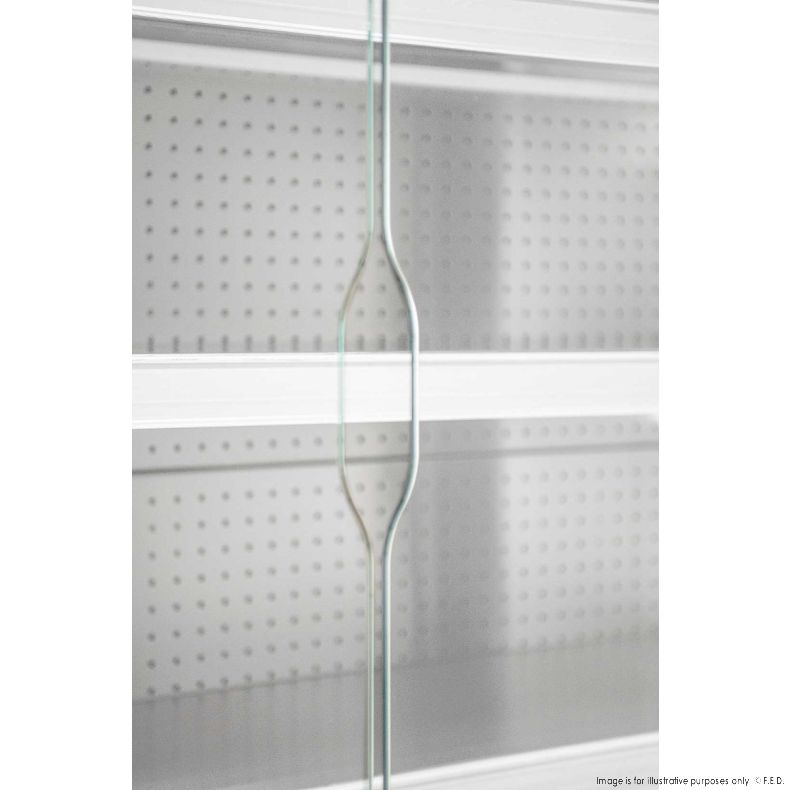

• 620mm wide Hinge Glass Door
• Display surface: 2,54 m²
• Top Ceiling LED Light
• Depth of Shelf (mm): 380
• Temperature Range: 0 ~ +4
• Tundish drain required

2 Years Parts and Labour

Specifications

Net Weight (Kg) - 210
Width (mm) - 1330
Depth (mm) - 765
Height (mm) - 2130
Packing Width (mm) - 880
Packing Depth (mm) - 1440
Packing Height (mm) - 2210
Power - 1830W + 1000W (2 x 10Amp)
Warranty - 2 Years Parts and Labour

Product Attachments

Spare_Part_Diagram_-_VULCANO_80-125_CA

VULCANO_80_-_ALL_DIMENSIONS

VULCANO_80_-_ALL_DIMENSIONS_2

VULCANO_80_VB_-_Panoramic_view_Model

VULCANO_80-187-_BASAMENT_SPACE

VULCANO_Instruction_Manual_-_Specs_at_the_end
