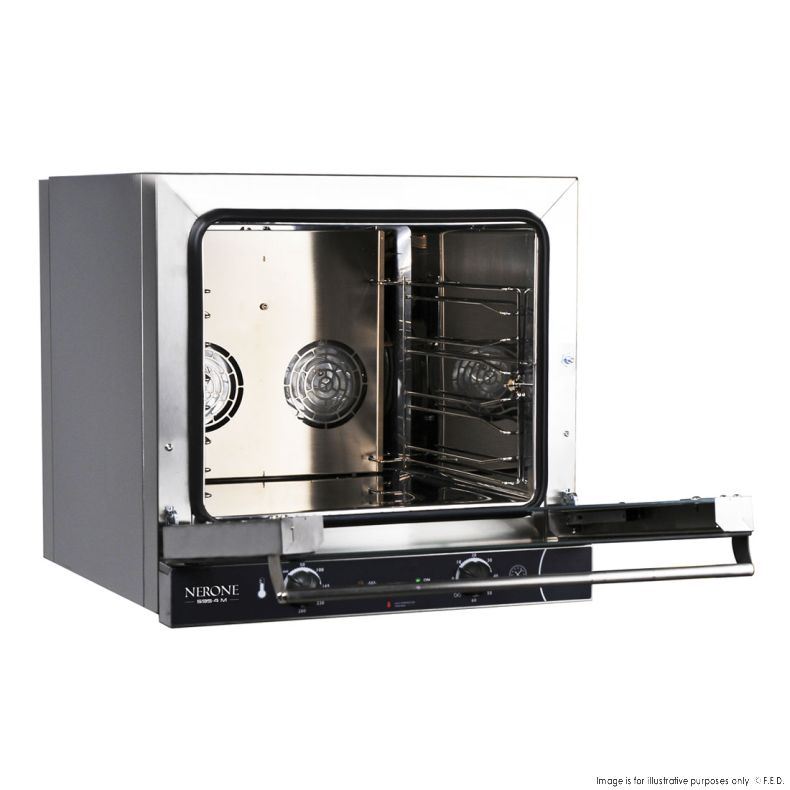

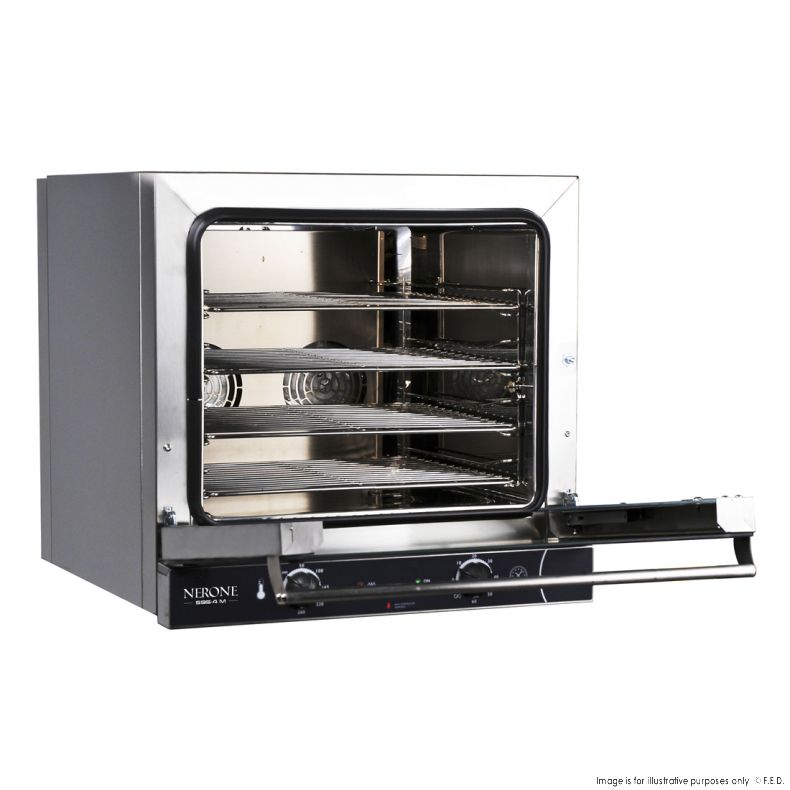

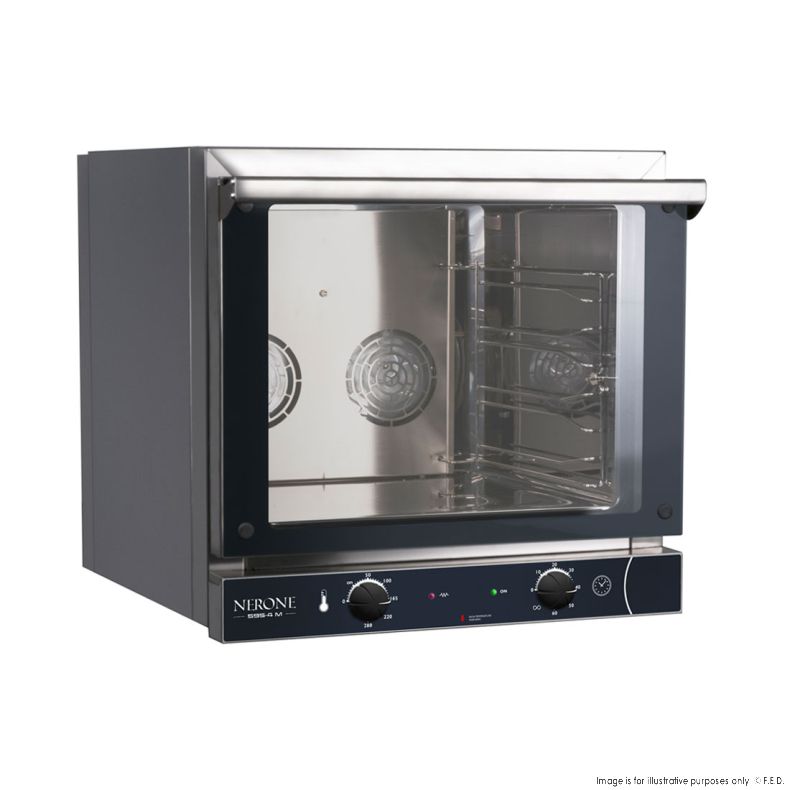

TECNODOM 4x435x350 Tray Convection Oven TDE-4C

TECNODOM 4x435x350 Tray Convection Oven TDE-4C

Key Features

• 4 Tray Convection Oven 4 x 435x350mm Trays Stainless steel cooking chamber with rounded corners
• Tempered low-e glass
• Overture Folding Door offers an innovative, high-performance door solution for large opening applications
• LED alarms
• Interlocking gasket fixing system
• According to IPX3 standard norms
• High resistance hinge
• Temperature range of 50˚C - 280˚C
• 60-minute timer or infinite
• 84mm distance between trays
• Machine Dimension 589x660x580 mm
• Internal Dimension: 464x420x370 mm

1 Year Parts and Labour Warranty

Specifications

Net Weight (Kg) - 34
Width (mm) - 589
Depth (mm) - 660
Height (mm) - 580
Packing Width (mm) - 720
Packing Depth (mm) - 625
Packing Height (mm) - 725
Power - 240V ; 2.35kW /10A
Warranty - 1 Year Parts and Labour

Product Attachments

TDE-4C Drawing

TDE-4C Breakdown

TDE-4C Technical_Data

Convection Oven Instruction Manual
