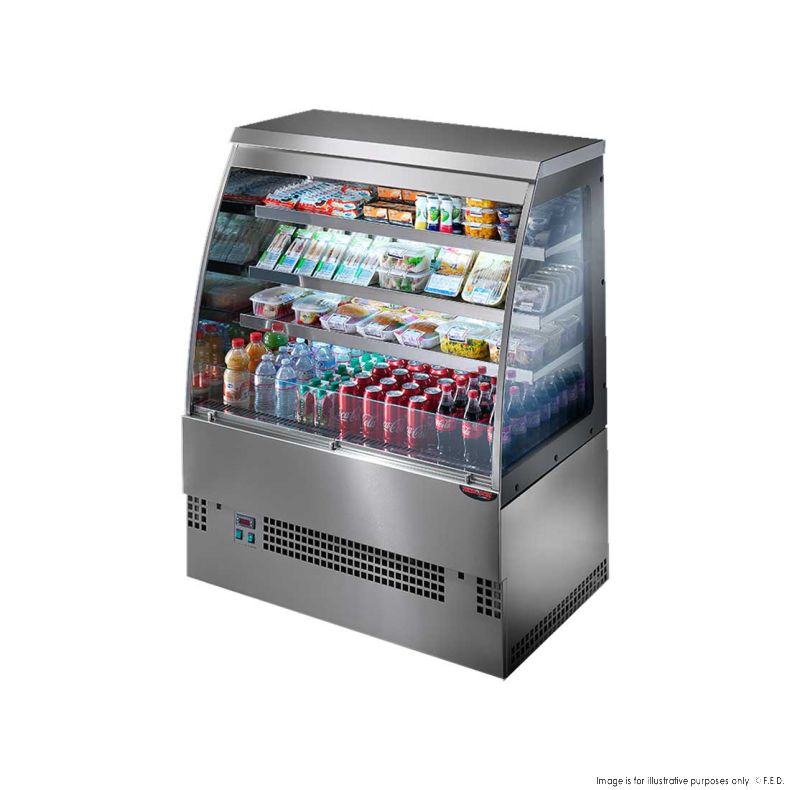

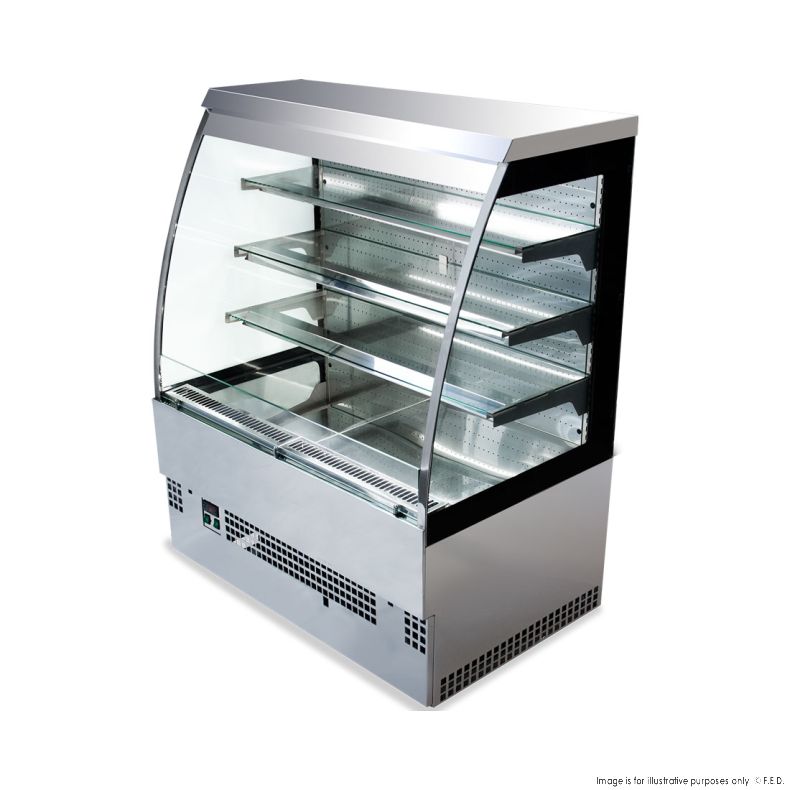

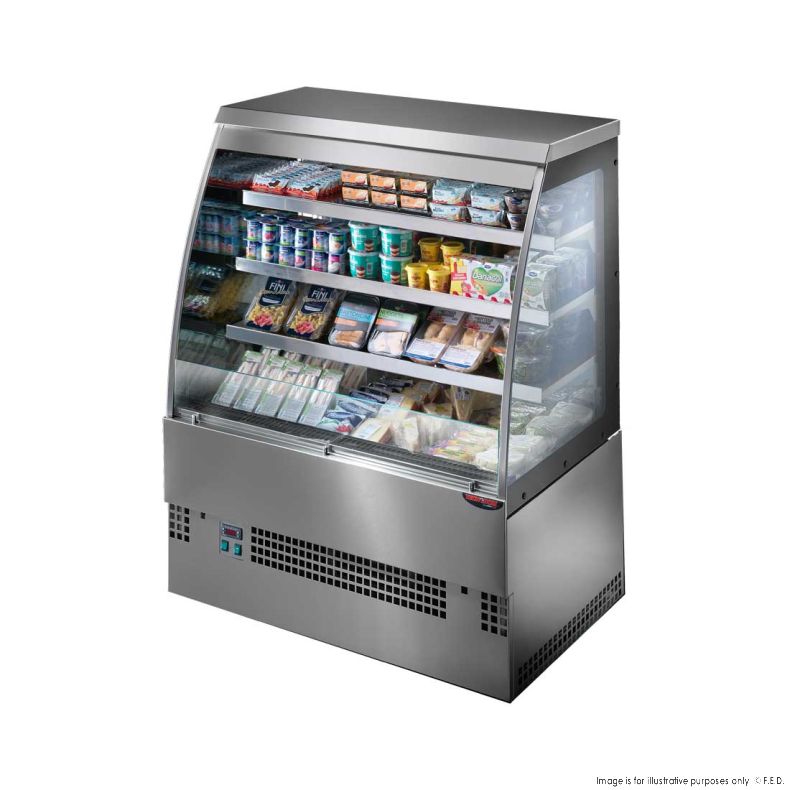

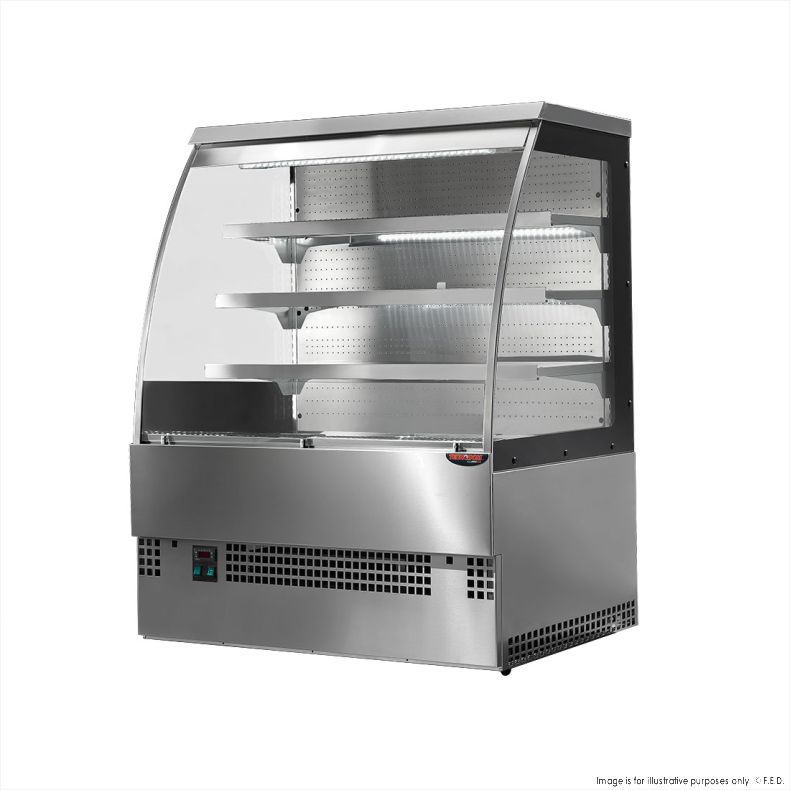

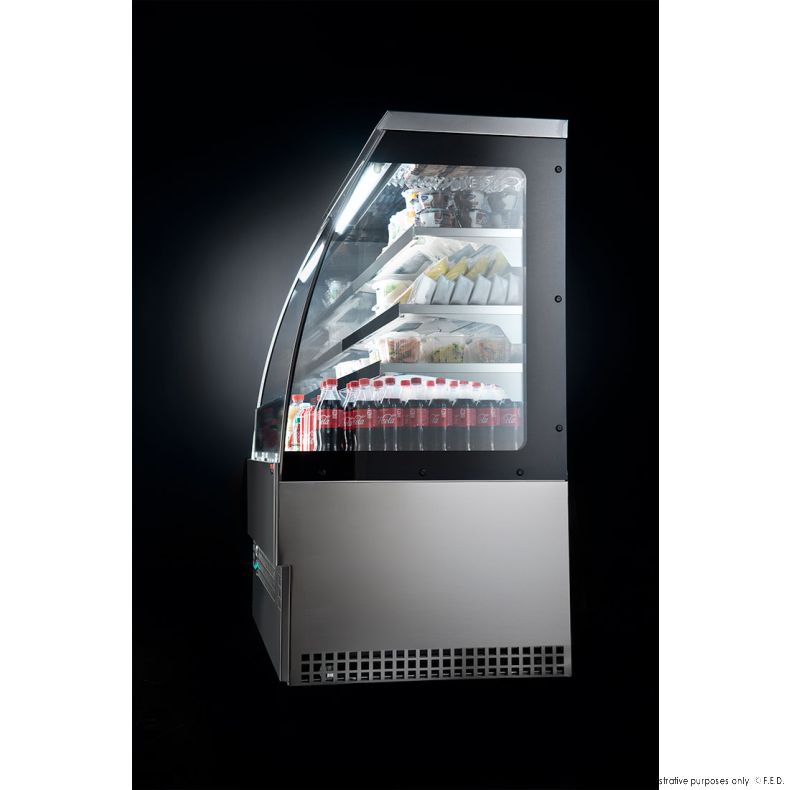

Tecnodom EVO Grab'n Go Self Serve Curve Display TDEVO-120S

Tecnodom EVO Grab'n Go Self-Serve Curve Display TDEVO-120S

Key Features

• Self Serve Open Food & Beverage Display ideal for placement in narrow spaces
• Efficient and reliable refrigeration system
• Low energy consumption and low environmental impact
• Tempered double-glazing side and air deflector glass

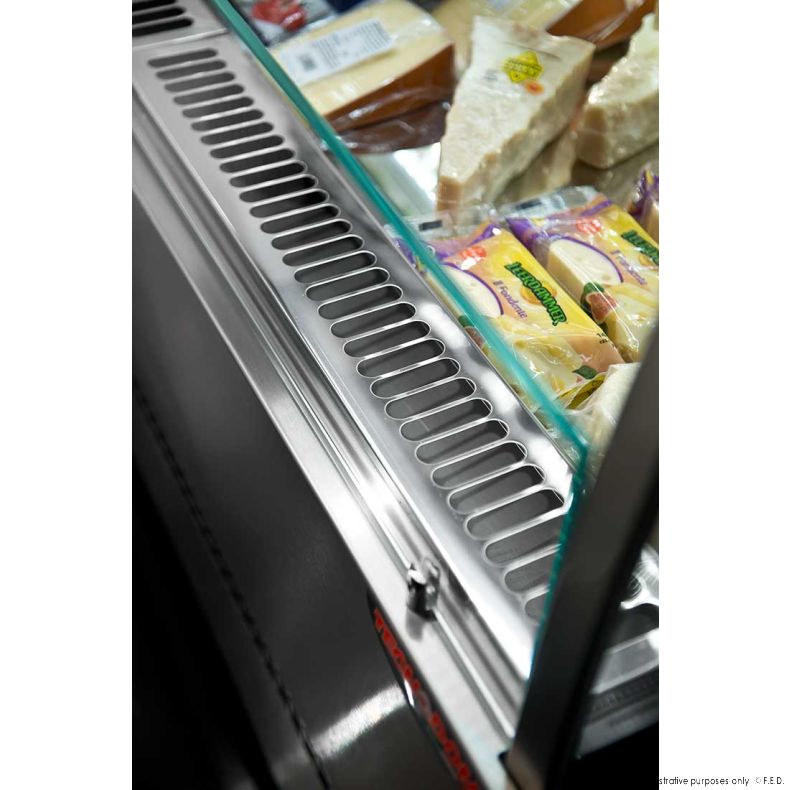

• Perforated back and interior ceiling for improved air circulation
• Removable lower display shelves
• 3 Stainless steel adjustable shelves

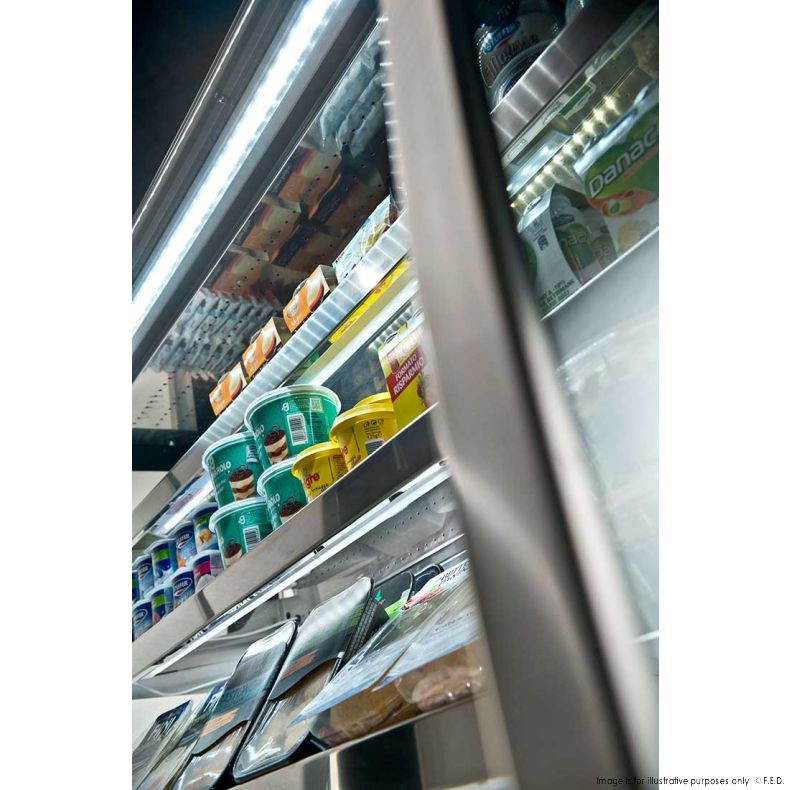

• Four LED lights (ceiling top + 3 shelves)

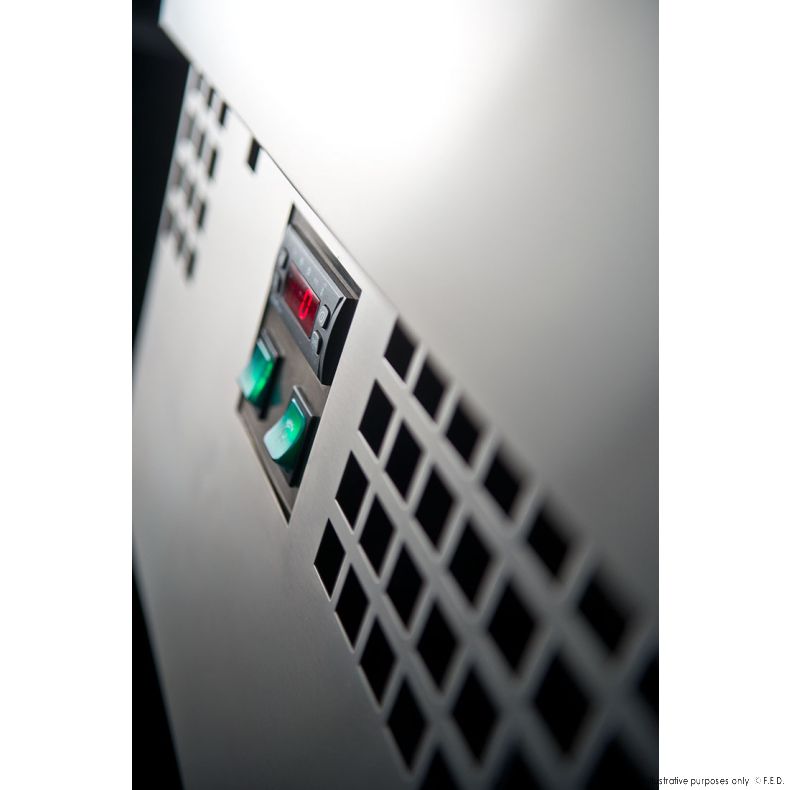

• Electronic control panel
• Off-cycle defrosting
• Suitable for displaying: Gastronomy, packaged snacks, and pastry, beverages, cold cuts, dairy products
• Temperature range: +3~+5
• Ambient/Rh%: 30/55
• Display surface (m²): 1.41
• Four lockable castors

2 Years Parts and Labour Warranty

Specifications

Net Weight (Kg) - 195
Width (mm) - 1205
Depth (mm) - 800
Height (mm) - 1520
Packing Width (mm) - 880
Packing Depth (mm) - 1300
Packing Height (mm) - 1720
Power - 240 V; 1.15kW / 10A
Warranty - 2 Years Parts and Labour

Product Attachments

TDEVO-120S CAD Drawing

TDEVO-120S Electric Diagram

TDEVO-120S Breakdown

TDEVO-120S Instruction Manual

TDEVO-120S Instruction Manual short version
