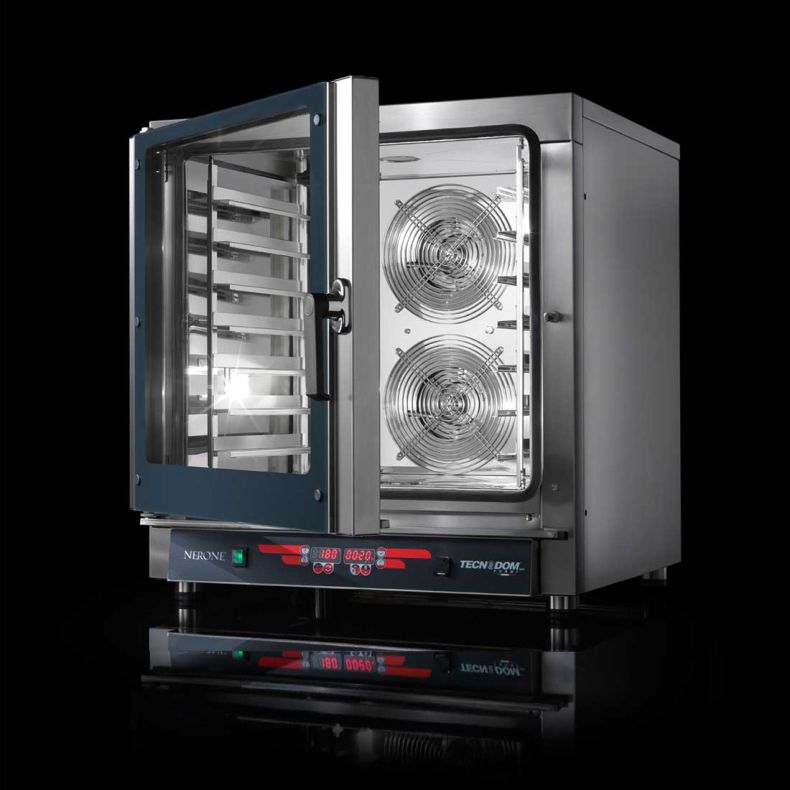

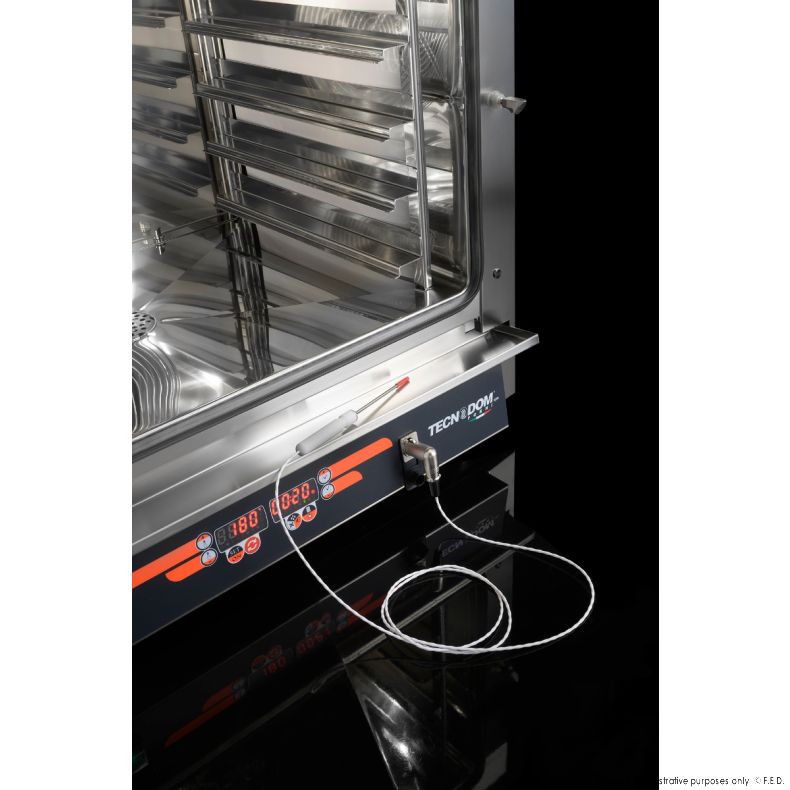

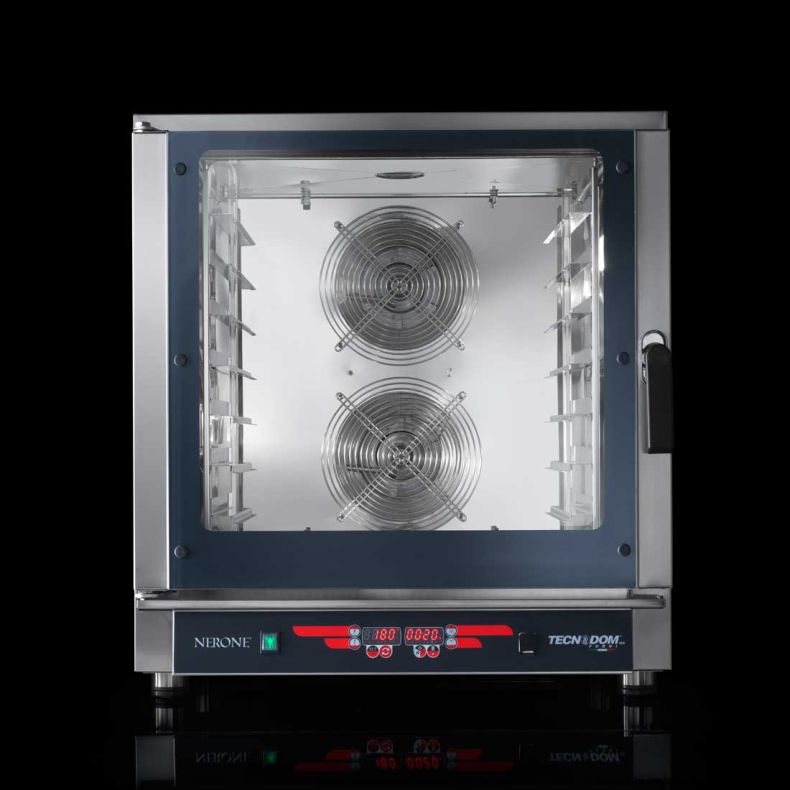

Tecnodom Icarus Digital Combi oven 600x400 mm or GN 1/1 TD-7NE

Tecnodom Icarus Digital Combi oven 600x400 mm or GN 1/1 TD-7NE

YOUR PROFESSIONAL PARTNER IN THE KITCHEN

100% Made In Italy

Digital combi oven with and without water injection system, suitable for 10 pans or grids 600x400 mm or GN 1/1

• Temperature Range: 30~280°C
• Version Electric - Digital
• Loading capacity 7 - 600x400 / 7 - GN 1/1
• Distance between trays 80 mm
• Oven chamber size: 680mm L x 520mm D x 620mm H
• External Dimensions: 840mm L x 920mm D x 935mm H
• Total electrical power 10,7 kW
• Voltage 380-415 V 3+N 50Hz
• Package dimensions: 880mm L x 955mm D x 1080mm H
• Net weight 106 kg
• Gross weight with package 129 kg

Grids and Pans Not Included

1 Year Parts and Labour Warranty

Specifications

Net Weight (Kg) - 105
Width (mm) - 830
Depth (mm) - 870
Height (mm) - 930
Packing Width (mm) - 880
Packing Depth (mm) - 995
Packing Height (mm) - 1080
Warranty - 1 Year Parts and Labour

Product Attachments

Combi_Oven_Instruction_Manual_English

Combi-7T_cad_drawing_1

Error_Codes

New_Icarus_-_7_10_Trays_exploded

Wiring_Diagram_TD7NE
