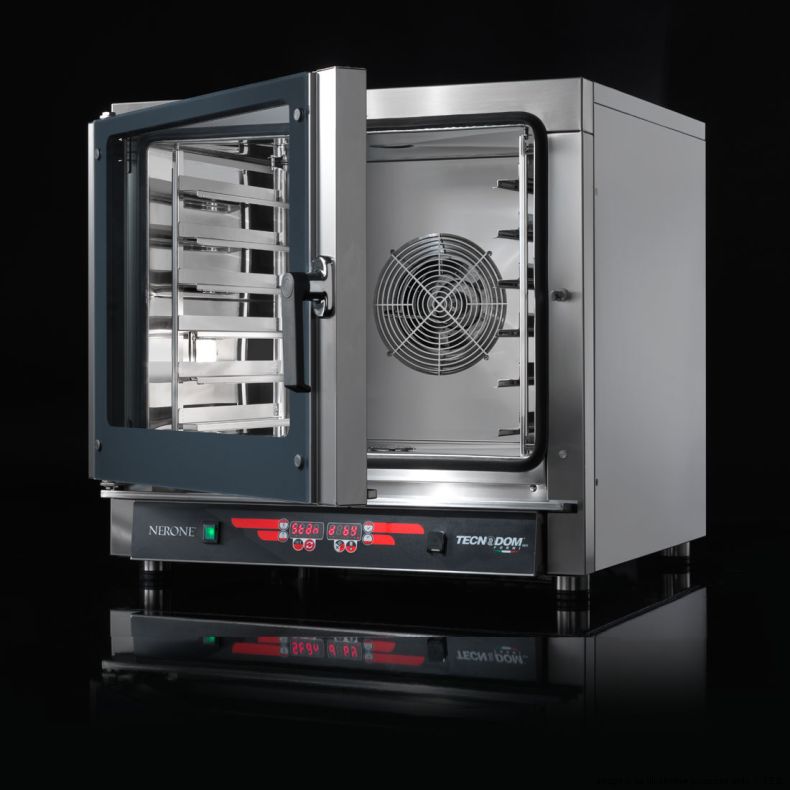

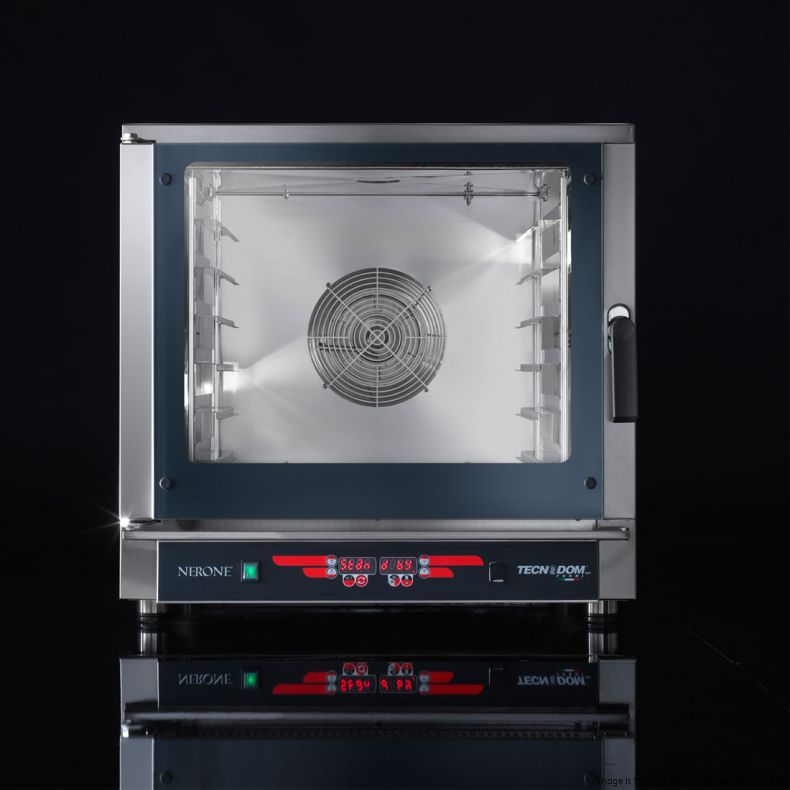

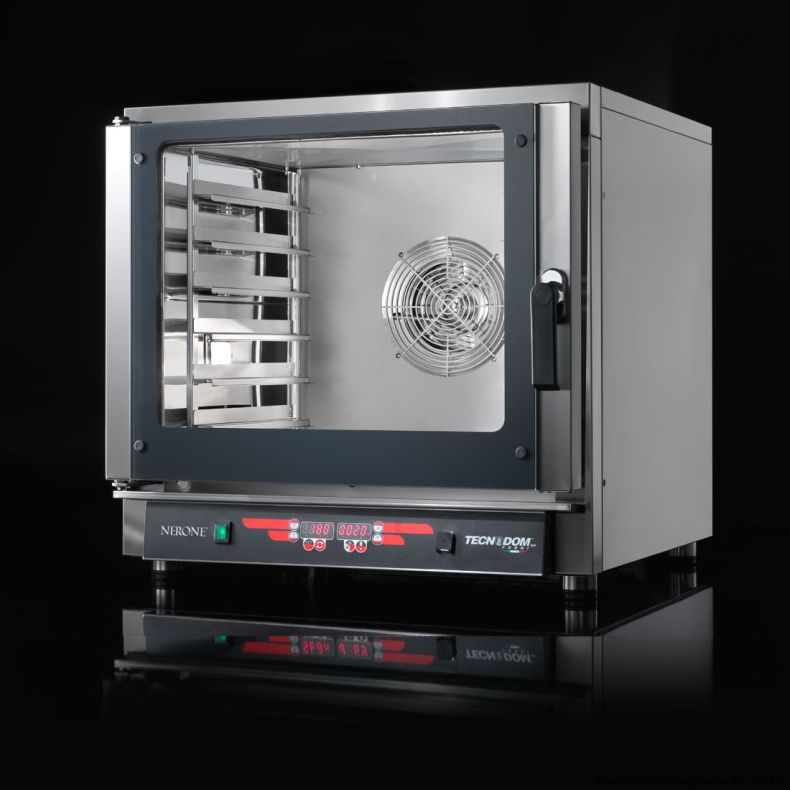

Tecnodom Icarus Nerone Combi Oven 6 Tray 3 Phase 7.65kw TD-6NE

Tecnodom Icarus Nerone Combi Oven 6 Tray 3 Phase 7.65kw TD-6NE

YOUR PROFESSIONAL PARTNER IN THE KITCHEN

100% Made In Italy

Digital convection oven with and without water injection system, suitable for 6 pans or grids 600x400 mm or GN 1/1

• Temperature Range: 30~280°C
• Version Electric - Digital
• Loading capacity 6 - 600x400 / 6 - GN 1/1
• Distance between trays 80 mm
• Oven chamber size: 680mm L x 480mm D x 520mm H
• External dimensions: 840mm L x 920mm D x 835mm H
• Total electrical power 7,65 kW
• Voltage 380-415 V 3+N 50Hz
• Each phase: 11 A
• Package dimensions: 880mm L x 955mm D x 980mm H
• Net weight 91 kg
• Gross weight with package 114 kg

Grids and Pans Not Included

1 Year Parts and Labour Warranty

Specifications

Net Weight (Kg) - 90
Width (mm) - 840
Depth (mm) - 870
Height (mm) - 830
Packing Width (mm) - 880
Packing Depth (mm) - 995
Packing Height (mm) - 980
Power - 7.65KW
Warranty - 1 Year Parts and Labour

Product Attachments

Combi_Oven_Instruction_Manual_English

Error_Codes

Spare_Parts_4-5-6_Tray_English_version
