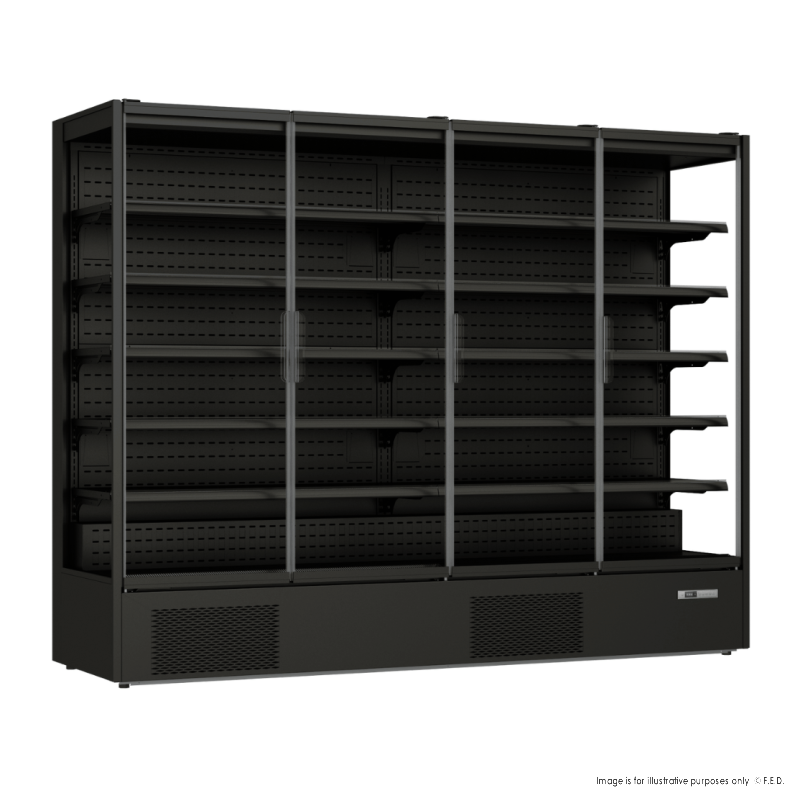

Thermaster Supermarket Panorama 4 Door Chiller Display DC-250B

Thermaster Supermarket Panorama 4 Door Chiller Display DC-250B

Key Features

• Capacity: 2585L
• Energy saving design
• R290 Natural refrigerant
• Self-closing door
• Door size: 611x1653mm, thickness 20mm.
• Low-E glass
• LED lighting on each shelf
• 5 level display shelving, 450mm deep.
• Adjustable shelf angle 0 °/7 °/14 °
• Product contents are displayed from the front and two sides
• Frameless glass door and transparent endwalls maximised display area
• Small base design to reduce floor footprint
• Stainless steel inner bottom
• Fan force cooling system
• Digital temperature display
• Adjustable legs
• Power: 1060W / 10A
• EC fans and Anti-reflex glass door minimise energy consumption
• Pull-out condensing unit to achieve the easiest after-sales operation
• Can be assembled line-up, without mullion as it is multiplexable
• Bright, Clean and Anti-glare
• Price tag included

Warranty: 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice

Specifications

Net Weight (Kg) - 440
Width (mm) - 2560
Depth (mm) - 740
Height (mm) - 2010
Packing Width (mm) - 800
Packing Depth (mm) - 2700
Packing Height (mm) - 2100
Power - 1060W / 10A
Warranty - 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice

Product Attachments

DC_Range_Manual

DC_Range_drawing

DC_Range_Parts_List_With_explode_diagram

Supermarket_Chillers
